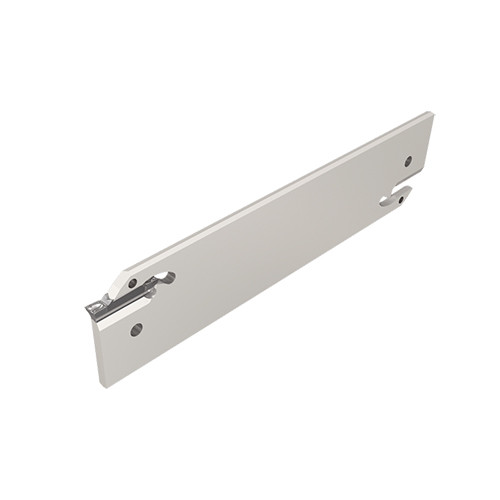

HGFH 26-3
Parting Off Holder; 4.331″ OAL ; Steel
| Shank Height (H) | 1.024″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 4.331″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.953″ |
| Cutting Position | External | Cutting Direction (HAND) | Neutral |
| Application | | Ext. Grooving | Parting | | Measurement Type | Inch |
| Number of Pocket (NOP) | 2 | Body Width_2 (WB_2) | 0.094″ |
| Shank Standard | Square | Tool Assembly Length (LTA) | 1.432″ |
Product Features
| Family Description | Double-ended parting and grooving blades for HGN and GRIP double-ended inserts. | Country of Origin | Israel |

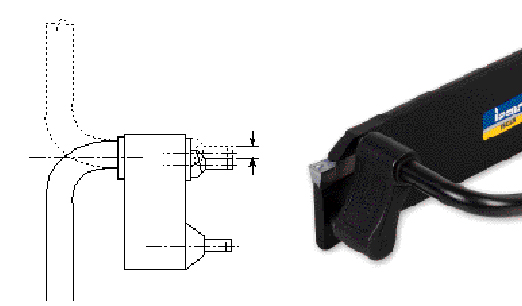

| Remarks | Extractor should be ordered separately. |
Shipping Info
Package Weight
0.128
