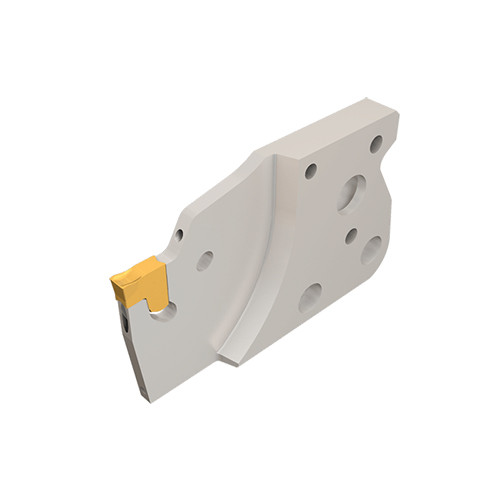

TAGPAD 2L-D52-JHP

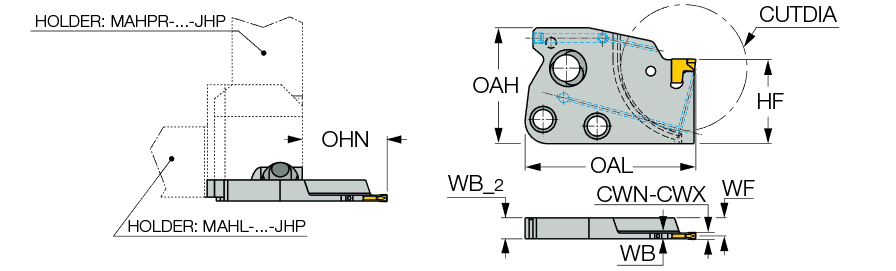

Parting Off Holder; 2.102″ OAL × 0.071″ CW Min. × 0.094″ CW Max. × 1.299″ OAH ; Steel
| Body Width (WB) | 0.065″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.071″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Length (OAL) | 2.102″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 1.299″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 0.204″ |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.236″ |
| Shank Standard | Square | Tool Assembly Length (LTA) | 2.436″ |
Product Features
| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels for parting and grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.105
