SGTFR 16-3

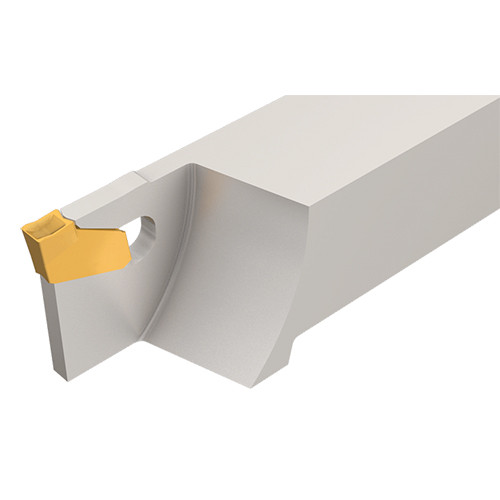

Parting Off Holder; 4-1/2″ OAL × 0.106″ CW Min. × 0.139″ CW Max. ; Steel

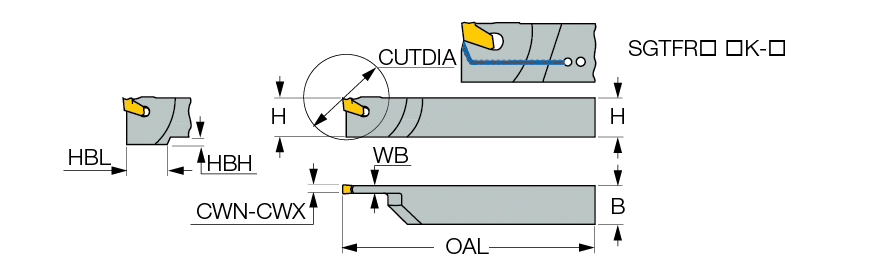

| Shank Height (H) | 5/8″ | Shank Standard | Square |
| Shank Width (B) | 5/8″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.106″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.38″ |
| Cutting Width Maximum (CWX) | 0.139″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Head Length (LH) | 3/4″ | Head Bottom Offset Height (HBH) | 0.12″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.271″ |
| Application | | Ext. Grooving | Parting | |
Product Features

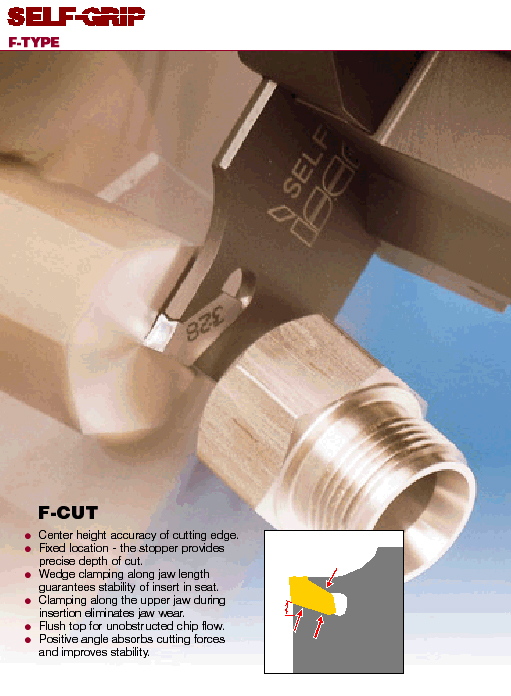

| Family Description | SELF-GRIP integral shank tool for parting & grooving. | Country of Origin | Israel |
Shipping Info
Package Weight
0.487
