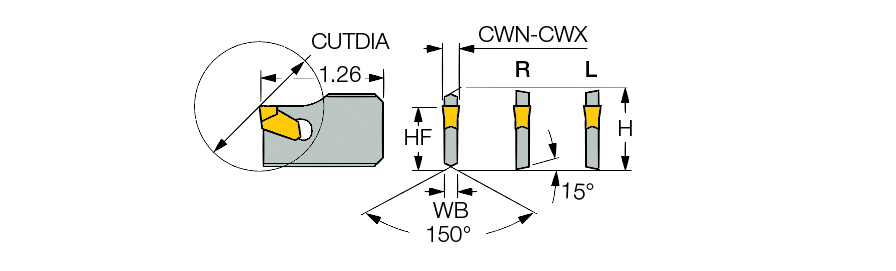

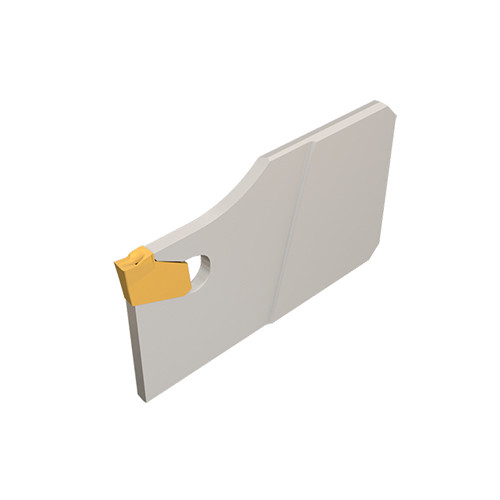

SGB 19-1.6
Parting Off Holder; 1.26″ OAL × 0.063″ CW Min. × 0.063″ CW Max. ; Steel
| Shank Height (H) | 0.748″ | Shank Standard | Square |
| Body Width (WB) | 0.047″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.063″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.063″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Overall Length (OAL) | 1.26″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0.709″ |
Product Features
| Family Description | Single-sided blades for SELF-GRIP parting & grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
