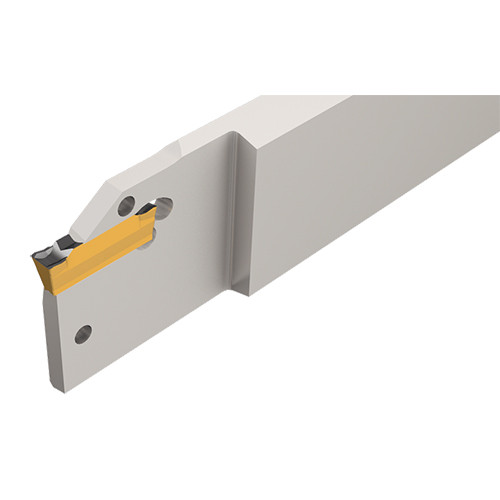

DGFHR 26T23-2
Parting Off Holder; 4.331″ OAL × 0.075″ CW Min. × 0.098″ CW Max. ; Steel

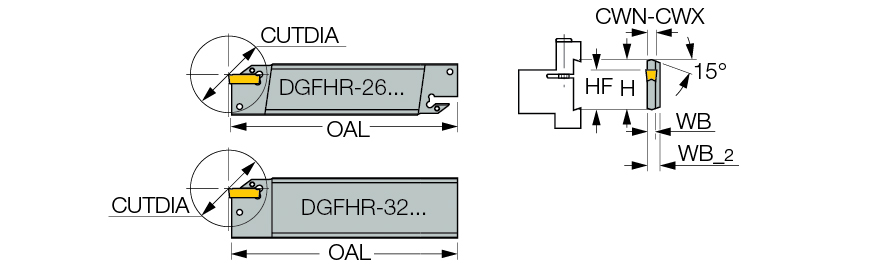

| Shank Height (H) | 1.024″ | Shank Standard | Square |
| Body Width (WB) | 0.063″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.075″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.654″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 4.331″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.315″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.602″ |
| Number of Pocket (NOP) | 2 |
Product Features

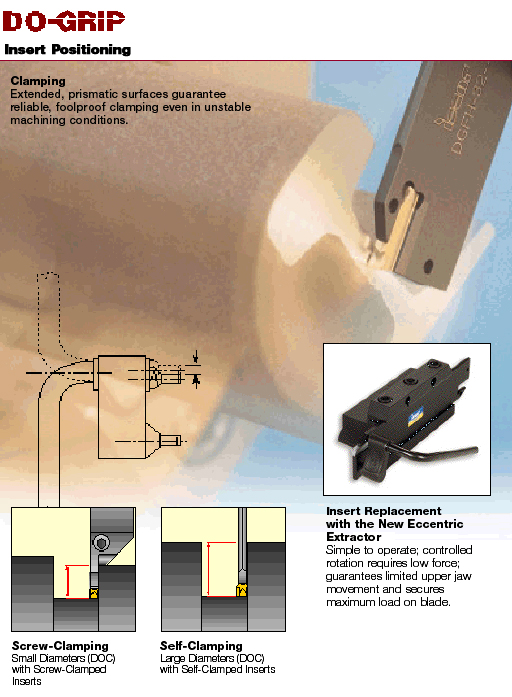

| Family Description | Double and single-ended, parting and grooving reinforced blades carrying DO-GRIP inserts. | Country of Origin | Israel |
| Remarks | Insert limit is Tmax=.709. If deeper penetration is required, the insert should be modified into single-ended by the user. DG..1.0 insert can be mounted into pocket sizes 2 and 3. in which case the pocket width has to be modified-click on More Info |
Shipping Info
Package Weight
0.234
Related Documentation
For DG.-1... inserts, modify holder pocket according to depth capacity table.
