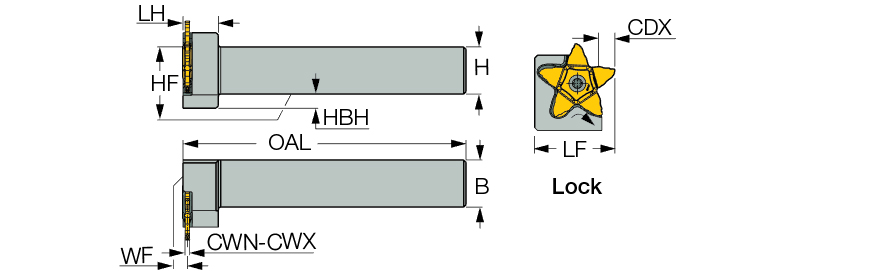

PCHPR 19-34
Parting Off Holder; 5″ OAL × 0.055″ CW Min. × 0.157″ CW Max. × 0.394″ Max Depth ; Steel
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 3/4″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.055″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.157″ | Tool Type | Face Grooving Tools |
| Overall Length (OAL) | 5″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 0.59″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.394″ | Functional Width (WF) | 0.07″ |
| Functional Length (LF) | 1.3″ | Head Bottom Offset Height (HBH) | 0.24″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 0.945″ |
Product Features
| Family Description | Perpendicular PENTACUT holders carrying inserts with 5 cutting edges, for facing, grooving, parting and recessing. | Country of Origin | Israel |
Shipping Info
Package Weight
0.965
