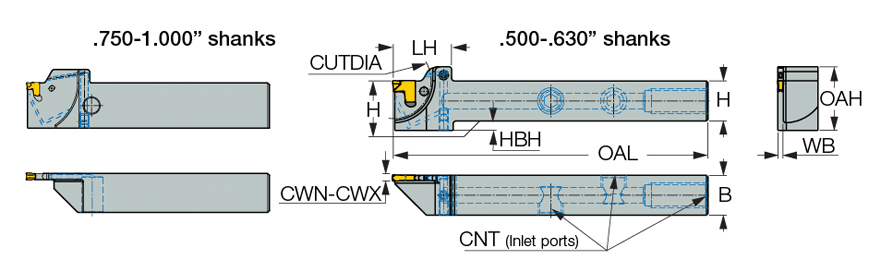

| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 3/4″ | Shank Standard | Square |
| Body Width (WB) | 0.1″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.11″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.138″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.1″ |
| Overall Length (OAL) | 4.724″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.378″ | Measurement Type | Inch |

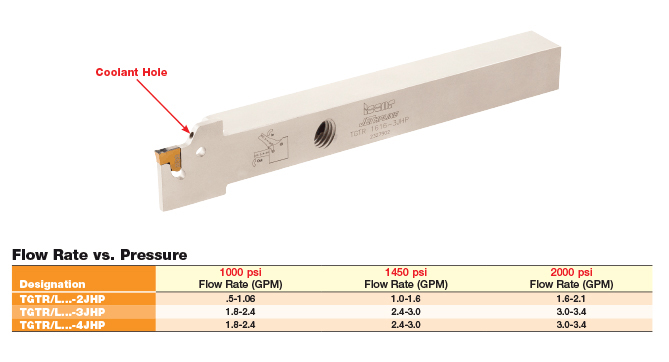

| Overall Height (OAH) | 1″ | Coolant Entry Thread Size (CNT) | G 1/8-28 |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.81″ |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.665
