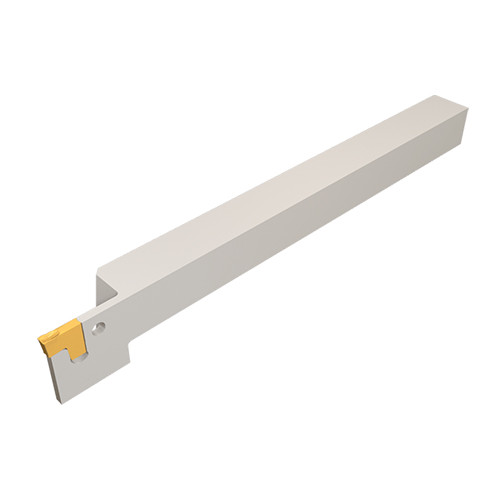

TGTR 1010-2T10SH-L120-IQ
Parting Off Holder; 4.724″ OAL × 0.071″ CW Min. × 0.098″ CW Max. × 0.394″ Max Depth ; Steel

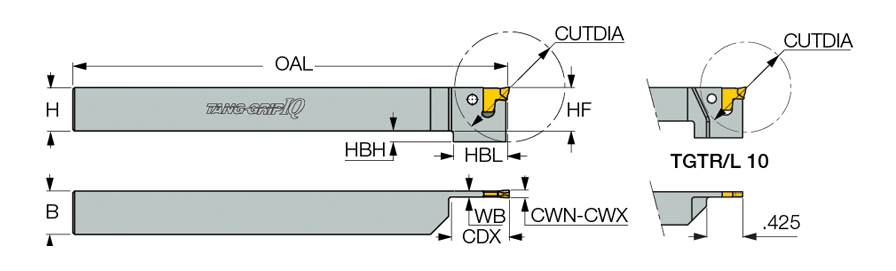

| Shank Height (H) | 0.394″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 0.394″ | Shank Standard | Square |
| Body Width (WB) | 0.065″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.071″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.024″ |
| Overall Length (OAL) | 4.724″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 0.591″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.394″ | Head Bottom Offset Height (HBH) | 0.2″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 0″ |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
Package Weight
0.238
