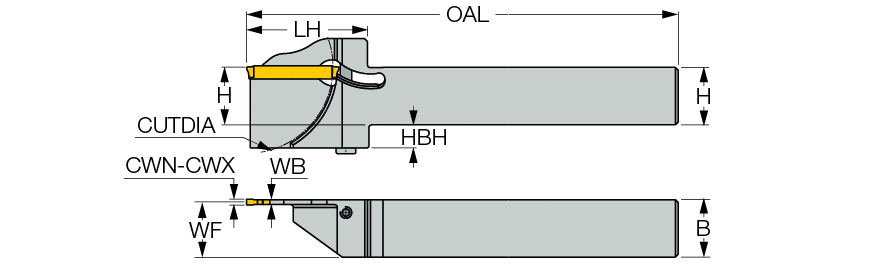

| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.74 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 60 mm |
| Overall Length (OAL) | 150 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 43.2 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 30 mm | Functional Width (WF) | 24.1 mm |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 3 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 57.4 mm |
| Shank Standard | Square |
Product Features

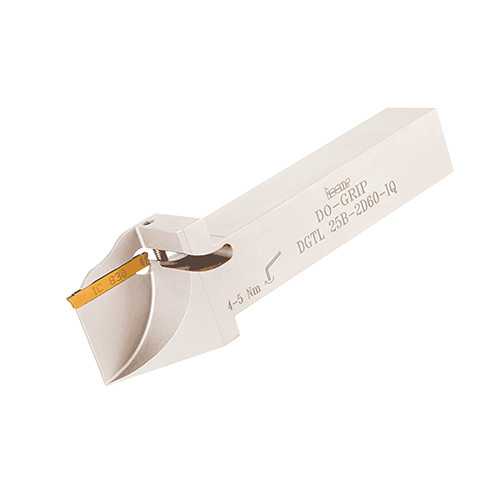

| Family Description | Integral shank reinforced parting and grooving tools for parting up to 65 mm diameters. | Country of Origin | Israel |

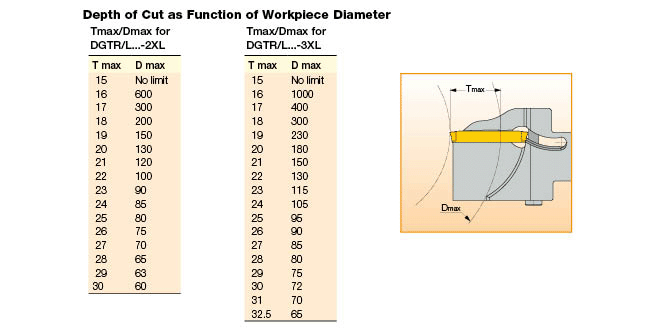

| Remarks | For insert depth capacity table, click on More Info |
Shipping Info
Package Weight
1.488
