PCHLS 25-24

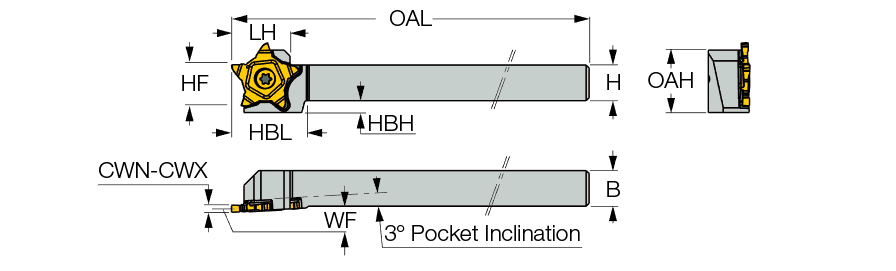

Parting Off Holder; 135 mm OAL × 0.8 mm CW Min. × 4.8 mm CW Max. × 30 mm OAH ; Steel
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.8 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4.8 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 135 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 19.5 mm | Measurement Type | Metric |
| Overall Height (OAH) | 30 mm | Tool Assembly Length (LTA) | 35.94 mm |
| Cutting Position | External |
Product Features

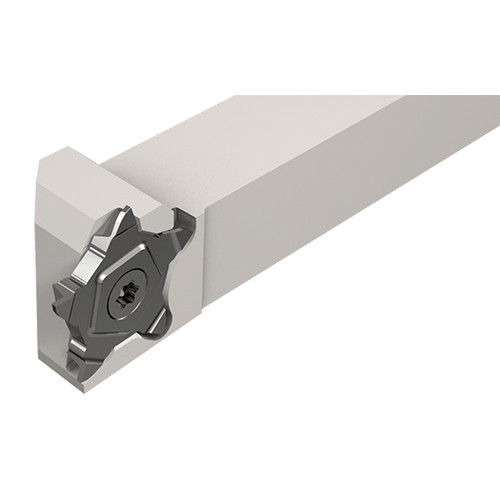

| Family Description | Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders. | Country of Origin | Israel |
Shipping Info
Package Weight
1.442
