PCHR 20-24
Parting Off Holder; 120 mm OAL × 0.5 mm CW Min. × 3.2 mm CW Max. × 6.5 mm Max Depth ; Steel
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.5 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.2 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 120 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 19.5 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 6.5 mm | Tool Assembly Length (LTA) | 43.47 mm |
| Cutting Position | External |
Product Features
| Family Description | Grooving, parting and recessing holders carrying inserts with 5 cutting edges. | Country of Origin | Israel |

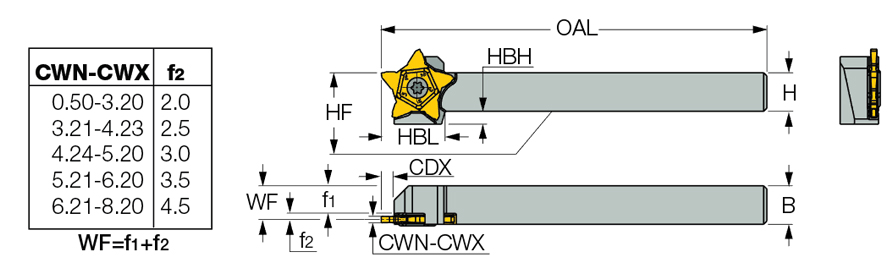

| Remarks | WF=f1+f2 (according to insert width (CW) being used) |
Shipping Info
Package Weight
0.87
