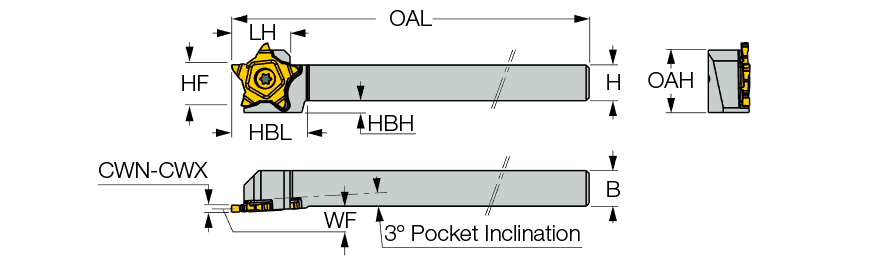

PCHLS 16-24
Parting Off Holder; 4.724″ OAL × 0.031″ CW Min. × 0.189″ CW Max. × 0.83″ OAH ; Steel
| Shank Height (H) | 0.63″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 0.63″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.031″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.189″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 4.724″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 0.768″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.83″ | Tool Assembly Length (LTA) | 1.415″ |
| Cutting Position | External |
Product Features
| Family Description | Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders. | Country of Origin | Israel |
Shipping Info
Package Weight
0.604
