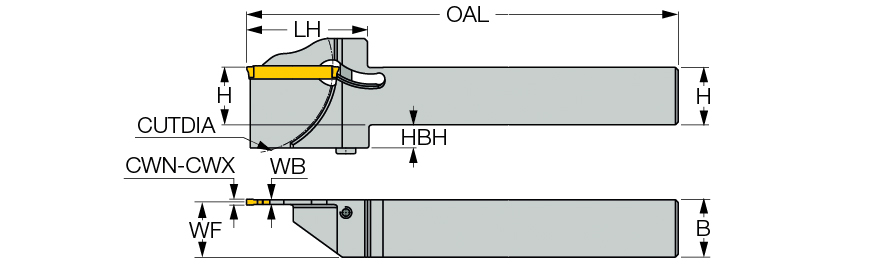

| Shank Height (H) | 0.752″ | Body Material | Steel |
| Shank Width (B) | 0.752″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.069″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.4″ |
| Overall Length (OAL) | 5.91″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.7″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 1.18″ | Functional Width (WF) | 0.72″ |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 0.35″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.26″ |
| Shank Standard | Square |
Product Features
| Family Description | Integral shank reinforced parting and grooving tools for parting up to 2.56″ diameters. | Country of Origin | Israel |

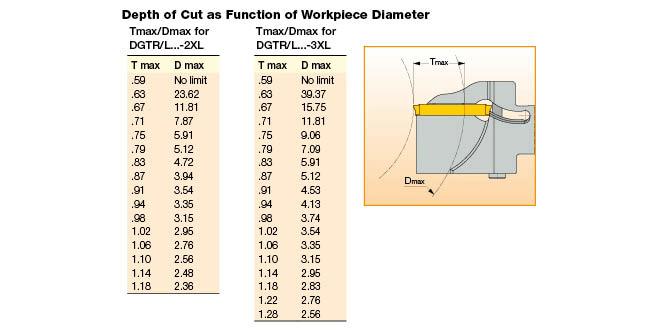

| Remarks | For insert depth capacity table, click on More Info |
Shipping Info
Package Weight
0.950
