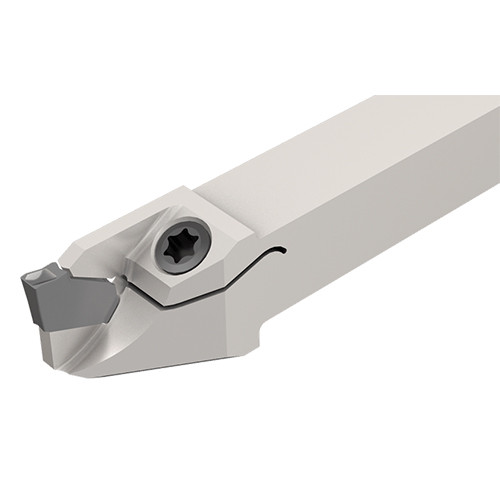

SGFL 12.7B-1.6D24 SH
Parting Off Holder; 5-1/2″ OAL × 0.063″ CW Min. × 0.063″ CW Max. × 0.54″ OAH ; Steel

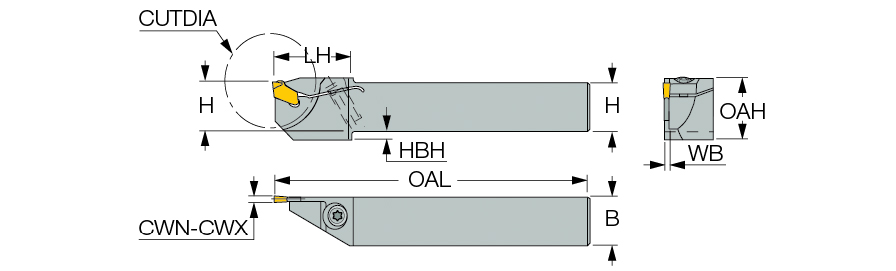

| Shank Height (H) | 1/2″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1/2″ | Shank Standard | Square |
| Body Width (WB) | 0.047″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.063″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.063″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.94″ |
| Overall Length (OAL) | 5-1/2″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 0.71″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.54″ | Tool Assembly Length (LTA) | 1.104″ |
| Cutting Position | External |

Product Features
| Family Description | Integral shank, short head, parting and grooving toolholder. Used for CNC and Swiss automatics. | Country of Origin | Israel |
Shipping Info
Package Weight
0.441
