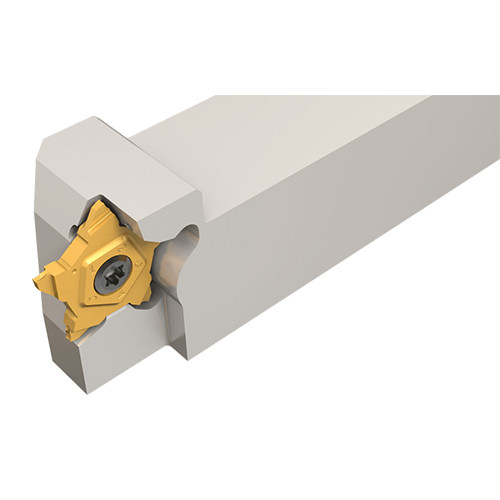

PCHL 12-24-JHP
Parting Off Holder; 100 mm OAL × 0.5 mm CW Min. × 3.2 mm CW Max. × 6.5 mm Max Depth ; Steel

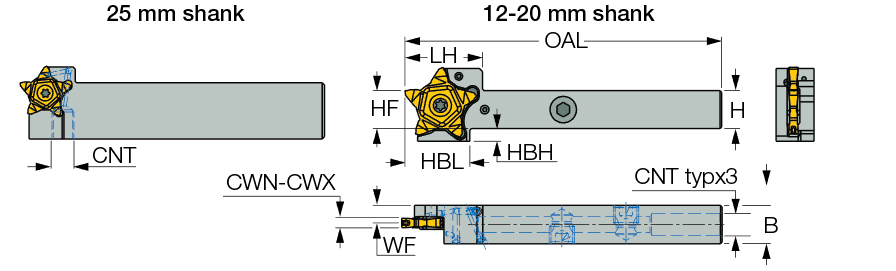

| Shank Height (H) | 12 mm | Shank Standard | Square |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.5 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 3.2 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Head Length (LH) | 24.5 mm | Functional Width (WF) | 5.5 mm |
| Cutting Depth Maximum (CDX) | 6.5 mm | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 4 mm |
| Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 35.29 mm |
Product Features

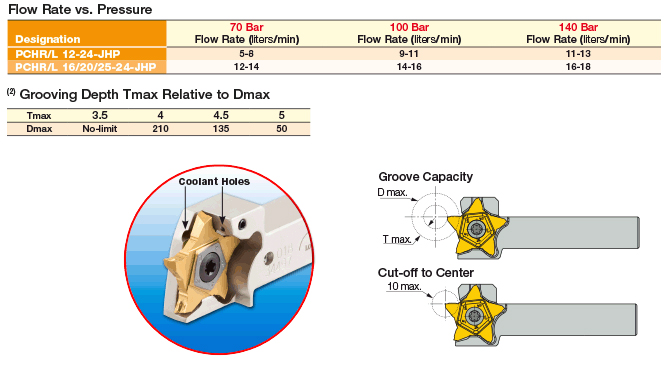

| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.315
