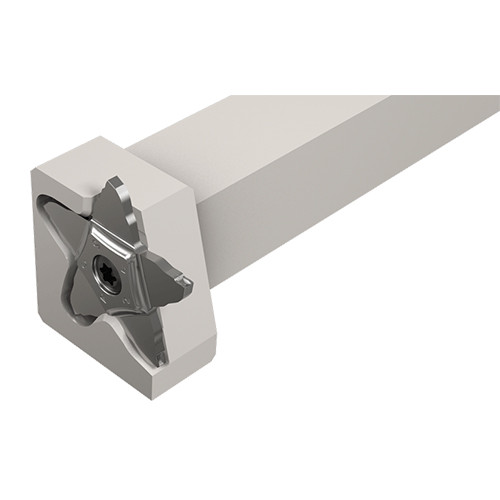

PCHPL 20-24
Parting Off Holder; 120 mm OAL × 0.5 mm CW Min. × 3.2 mm CW Max. ; Steel

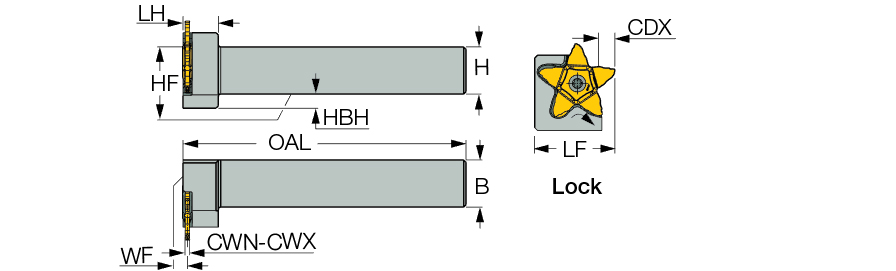

| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.5 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.2 mm | Tool Type | Face Grooving Tools |
| Overall Length (OAL) | 120 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 11.5 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 6.5 mm | Functional Width (WF) | 1.5 mm |
| Functional Length (LF) | 28 mm | Tool Assembly Length (LTA) | 0 mm |
| Cutting Position | External |
Product Features
| Family Description | Perpendicular PENTACUT holders carrying inserts with 5 cutting edges, for facing, grooving, parting and recessing. | Country of Origin | Israel |
Shipping Info
Package Weight
0.946
