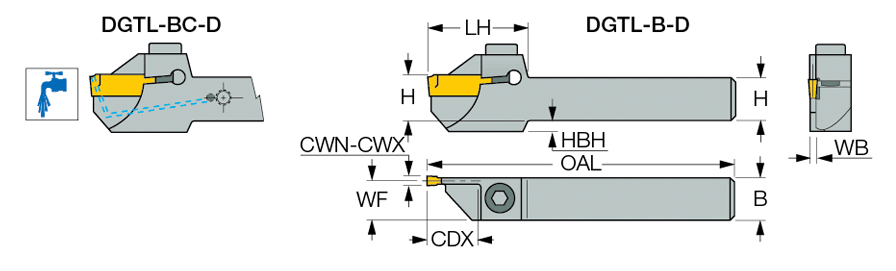

DGTR 20B-1.4D30
Parting Off Holder; 140 mm OAL × 1.4 mm CW Min. × 1.4 mm CW Max. × 15 mm Max Depth ; Steel
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Body Width (WB) | 1 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.4 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1.4 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Head Length (LH) | 29.6 mm | Functional Width (WF) | 19.5 mm |
| Cutting Depth Maximum (CDX) | 15 mm | Tool Assembly Length (LTA) | 40.4 mm |
| Cutting Position | External |
Product Features
| Family Description | Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts. | Country of Origin | Israel |
| Remarks | Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
Package Weight
0.983
Related Documentation

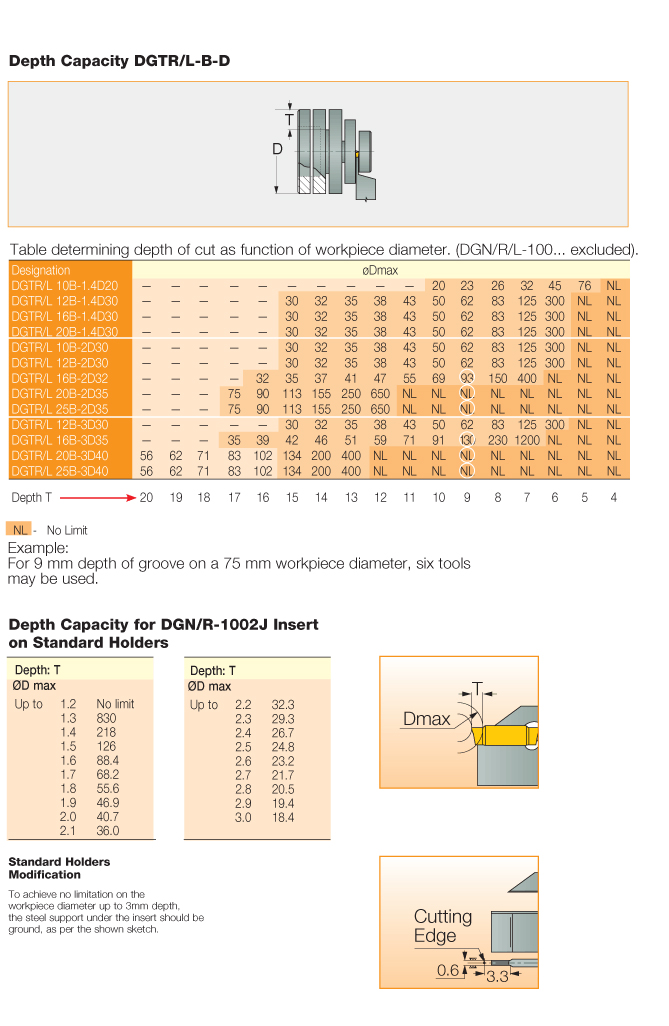

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
