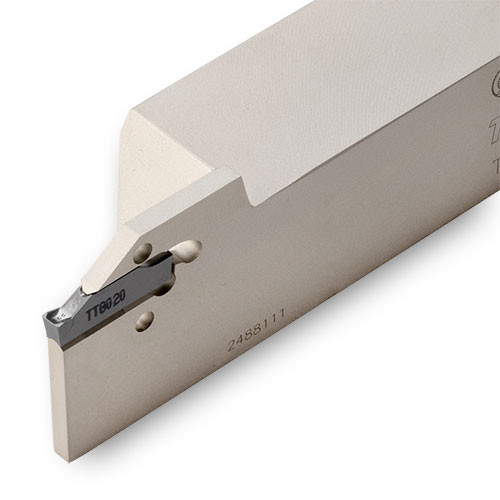

TGEL19-3

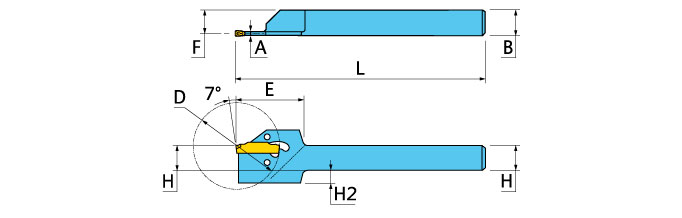

| Shank Height (H) | 3/4″ | Shank Standard | Square |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 1.77″ |
| Cutting Width Maximum (CWX) | 1.2 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.22″ | Measurement Type | Inch |
| Functional Length (LF) | 4-1/2″ | Insert Seat Size Code (SSC) | 3 |
| Cutting Position | External | Functional Width (WF) | 0.703″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.624
