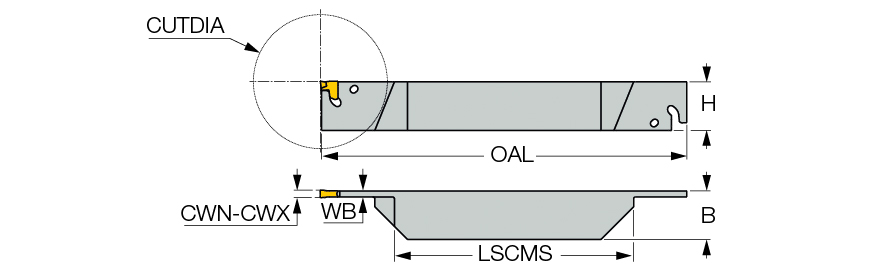

| Shank Height (H) | 25 mm | Number of Pocket (NOP) | 2 |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Body Width (WB) | 3.4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3.7 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 4.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 65 mm |
| Overall Length (OAL) | 150 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Position | External | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 50.3 mm |
Product Features

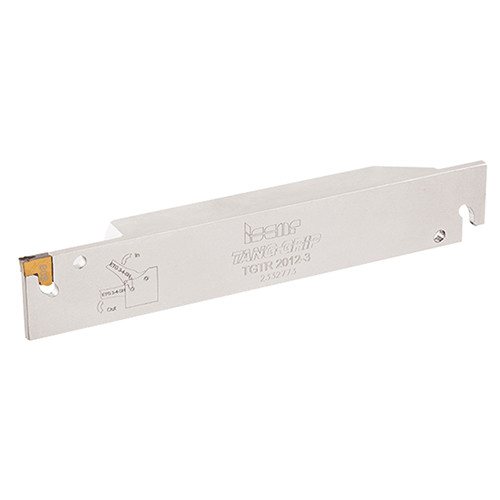

| Family Description | Integral shank 2 pocket tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
Package Weight
1.047
