PCHR 25-34-8
Parting Off Holder; 135 mm OAL × 3.19 mm CW Min. × 8.2 mm CW Max. × 10 mm Max Depth ; Steel

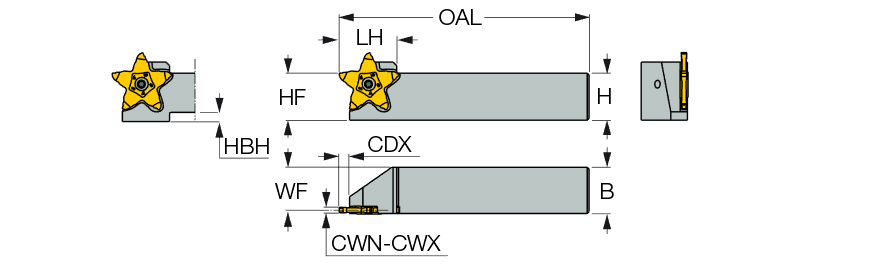

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 3.19 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 8.2 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 135 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 31 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 10 mm | Functional Width (WF) | 22.5 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 42.75 mm |
Product Features
| Family Description | PENTACUT holders carrying 5 cutting edged inserts, for grooving, parting and recessing. | Country of Origin | Israel |
Shipping Info
Package Weight
1.400
