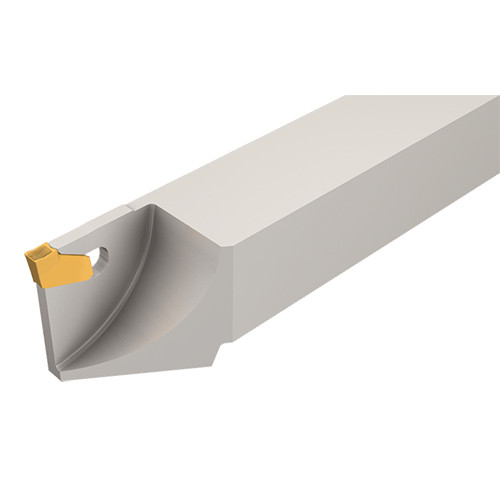

SGTFR 1212-2D 30
Parting Off Holder; 150 mm OAL × 1.8 mm CW Min. × 2.69 mm CW Max. ; Steel

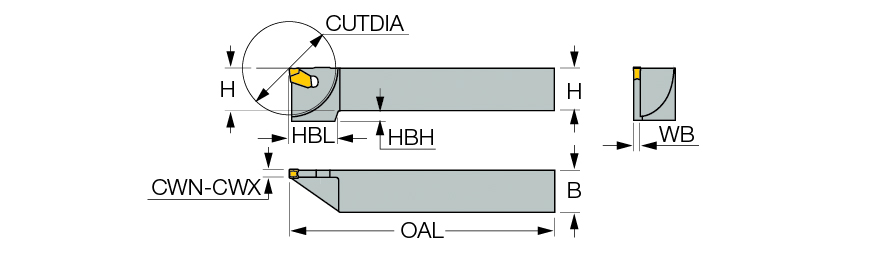

| Shank Height (H) | 12 mm | Shank Standard | Square |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Body Width (WB) | 1.7 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 30 mm |
| Cutting Width Maximum (CWX) | 2.69 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Head Length (LH) | 17 mm | Head Bottom Offset Height (HBH) | 4 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 28.19 mm |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP reinforced tool for parting and grooving | Country of Origin | Israel |
Shipping Info
Package Weight
0.432
