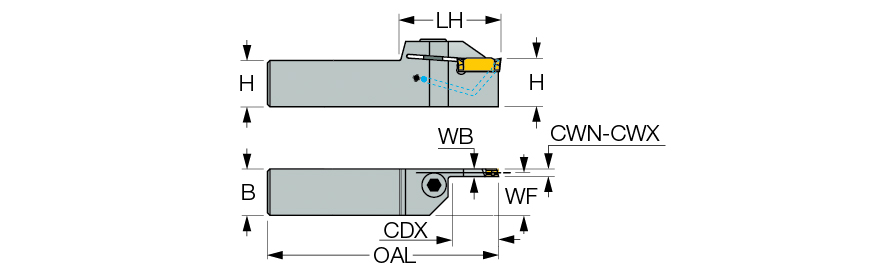

DGTL 25BC-4T25
Parting Off Holder; 140 mm OAL × 4 mm CW Min. × 4 mm CW Max. × 25 mm Max Depth ; Steel
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Body Width (WB) | 3.4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 4 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 4 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Head Length (LH) | 42 mm | Functional Width (WF) | 23.3 mm |
| Cutting Depth Maximum (CDX) | 25 mm | Tool Assembly Length (LTA) | 52 mm |
| Cutting Position | External |
Product Features

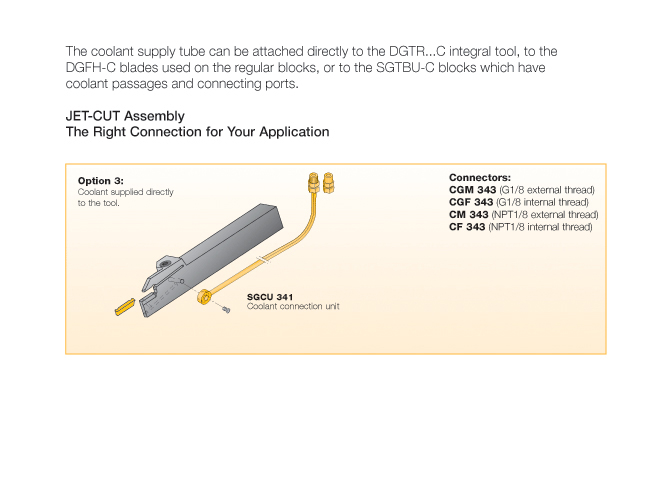

| Family Description | Parting and grooving tools with coolant holes carrying JET-CUT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.422
