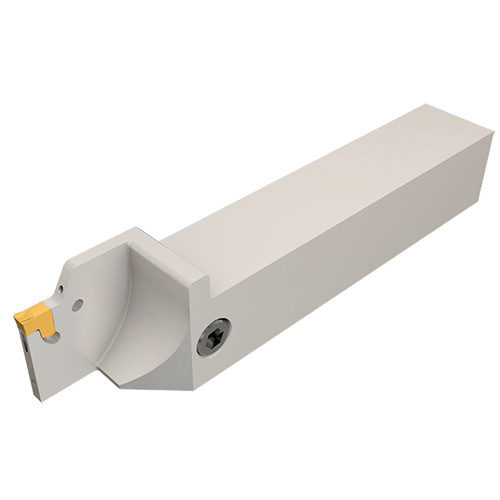

TGTL 1010-2JHP
Parting Off Holder; 100 mm OAL × 1.8 mm CW Min. × 2.5 mm CW Max. × 19.5 mm OAH ; Steel

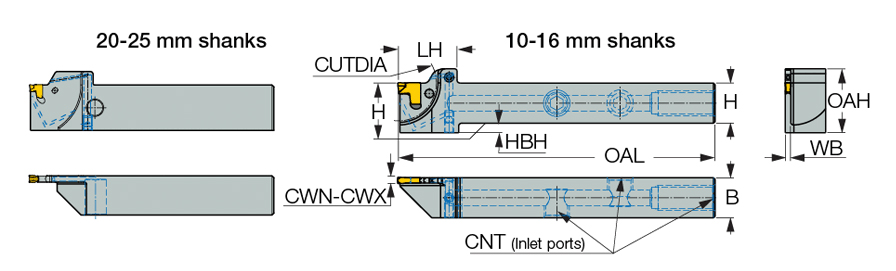

| Shank Height (H) | 10 mm | Shank Standard | Square |
| Shank Width (B) | 10 mm | Body Material | Steel |
| Body Width (WB) | 1.72 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 24 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |

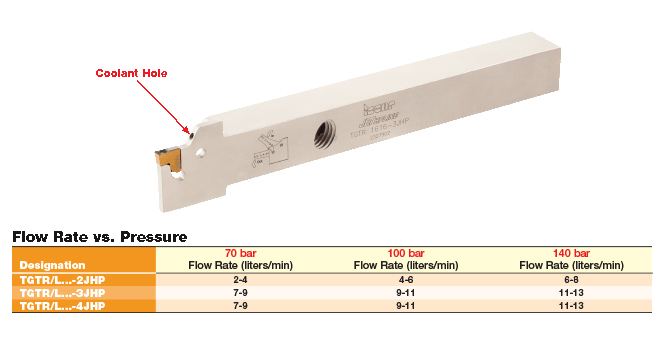

| Head Length (LH) | 18.5 mm | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Overall Height (OAH) | 19.5 mm | Head Bottom Offset Height (HBH) | 5 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 29.5 mm |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.198
