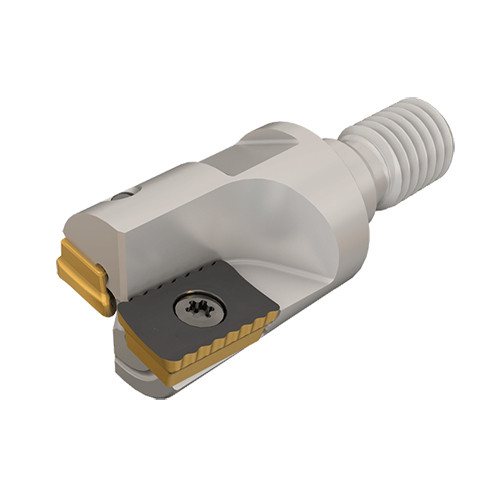

P290 EPW D1.50-4-M16-18
Indexable End Mill; 1-1/2″ Dia. × 0.708″ LOC × 1.142″ Shank Dia. × 2.559″ OAL ; 4 FL ; 90 Degrees

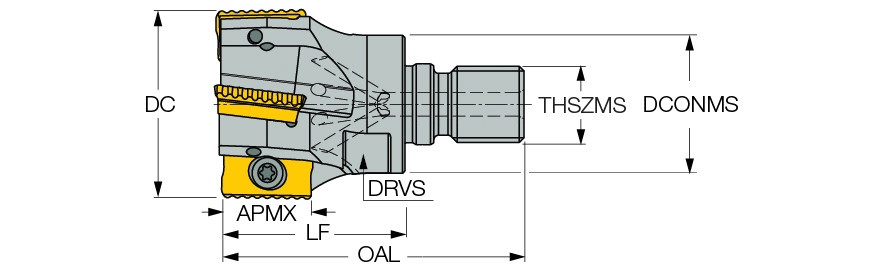

| Cutting Diameter (DC/DCX) | 1-1/2″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1-1/2″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.708″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 2.559″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Rampdown | Shouldering | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW | Body Material | Steel |
| Weight of Item (WT) | 0.41 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.575″ |
Product Features
| Family Description | Endmills with FLEXFIT threaded adaptation, carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.653
