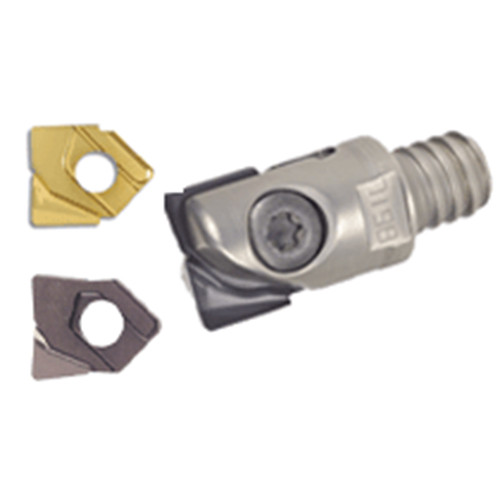

HCE D16/.62-MMT10
Indexable End Mill; 0.63″ Dia. × 0.4055″ LOC × 0.598″ Shank Dia. × 1.447″ OAL ; 2 FL ; 90 Degrees

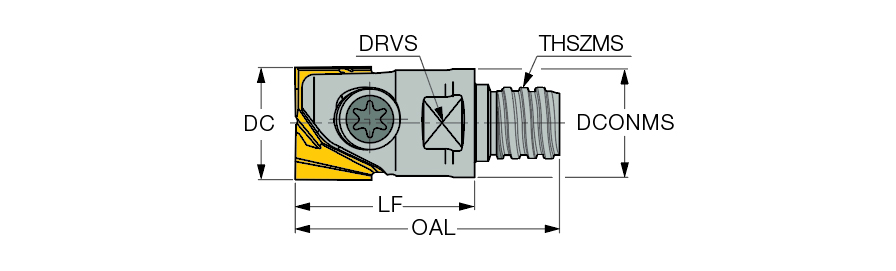

| Cutting Diameter (DC/DCX) | 0.63″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 0.63″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 1 | Drive Size (DRVS) | 0.512″ |
| Depth of Cut Maximum (APMX) | 0.4055″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 1.447″ | Torque (TQ) | 69 lbfxin |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Shouldering | Slotting | Undercutting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HCC D160-R1.0-QF | Measurement Type | Inch |
| Weight of Item (WT) | 0.06 Lbs | Body Material | Steel |
| Functional Length (LF) | 0.984″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | BALLPLUS, multifunction endmills with a MULTI-MASTER threaded adaptation that can carry ball nose, 90° and toroidal inserts | Country of Origin | Israel |
| Remarks | For undercutting, use HTR inserts only The dimensions are for HCC inserts with re=.02 Do not apply lubricant to the MULTI-MASTER threaded connection |
Shipping Info
Package Weight
0.265
