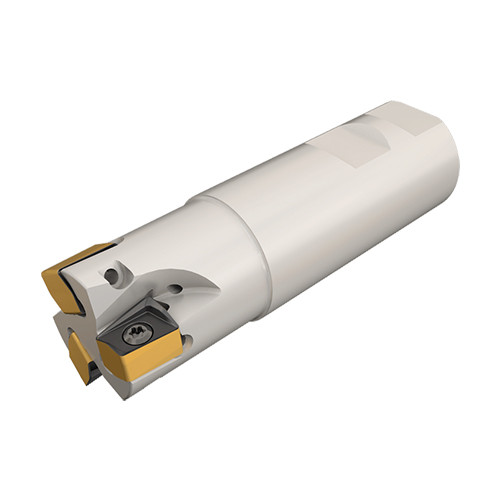

H490 E90AXD1.50-4W1.25-12
Indexable End Mill; 1-1/2″ Dia. × 0.472″ LOC × 1-1/4″ Shank Dia. × 4-1/4″ OAL × 1-1/2″ LU ; 4 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 3.109″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.472″ | Usable Length (LU) | 1-1/2″ |
| Overall Length (OAL) | 4-1/4″ | Flute Count (NOF) | 4 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H490 ANKX 1205PNTR-RM | Body Material | Steel |
| Weight of Item (WT) | 1.43 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | Country of Origin | Germany |

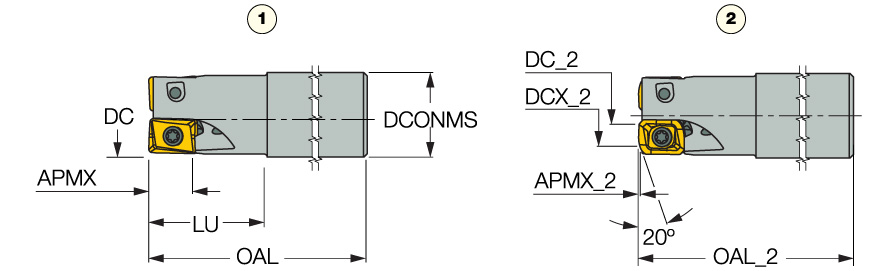

| Remarks | For adaptation, click on More Info. 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
1.763
