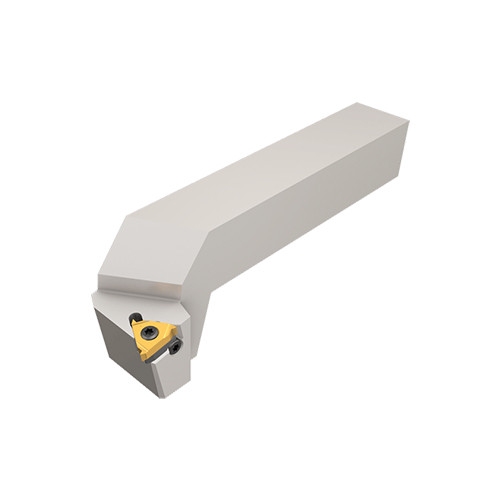

SER 2525 M16D

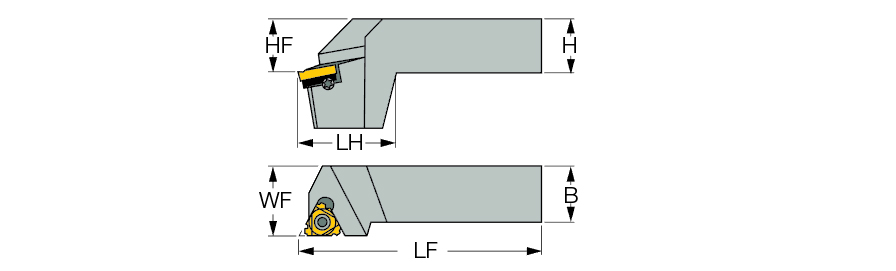

| Head Length (LH) | 38 mm | Functional Width (WF) | 32 mm |
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | 16 ER.. |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | External Non-Rotating Threading Tools |
| Cutting Position | External | Measurement Type | Metric |
| Application | | Ext. Grooving | External Threading | | Functional Length (LF) | 150 mm |
Product Features
| Family Description | External threading, drophead toolholders. Designed for upside-down position keeping cutting edge height at the same level as regular tools | Country of Origin | Israel |
| Remarks | All toolholders are made for 1.5 helix angle. For GTGA inserts, use anvil AE 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
1.931
