FF EW D1.25-4.0-W1.0-06-C

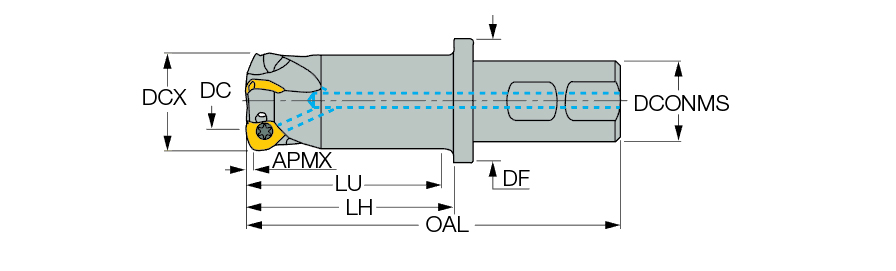

Indexable End Mill; 0.7″ Dia. × 0.047″ LOC × 1″ Shank Dia. × 6.76″ OAL × 4″ LU ; 3 FL ; Weldon Shank ; 13 Degrees
| Cutting Diameter (DC/DCX) | 0.7″ | Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 0.7″ | Usable Length (LU) | 4″ |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.047″ | Torque (TQ) | 17.7 lbfxin |
| Overall Length (OAL) | 6.76″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | FF WOMT0602 | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.65 Lbs | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Head Length (LH) | 4.12″ |
Product Features
| Family Description | FEEDMILL, fast feed endmills using FF WO.. inserts. Can run at very high feed rates of up to .059 inch/tooth at small DOC, resulting in high metal removal rates. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
