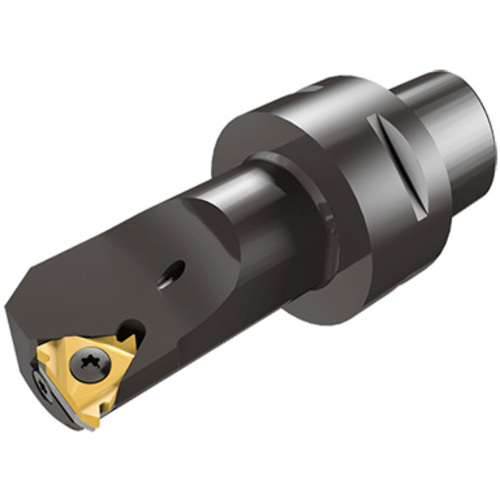

C5 SIR-14060-16

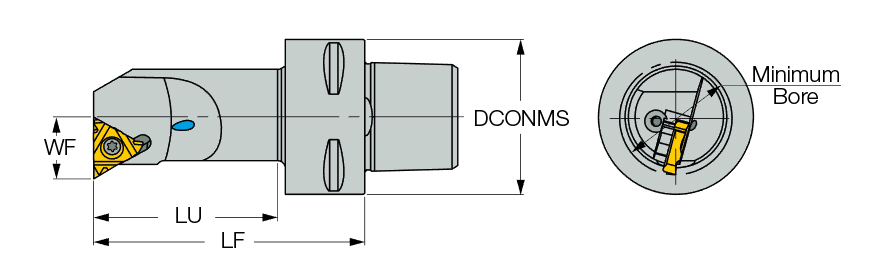

| Connection Diameter Machine Side (DCONMS) | 1.968″ | Functional Width (WF) | 0.531″ |
| Minimum Bore Diameter (DMIN) | 0.984″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 1.496″ |
| Cutting Position | Internal | Measurement Type | Inch |
| Application | | Int. Grooving | Internal Threading lay down | | Functional Length (LF) | 2.362″ |
Product Features
| Family Description | Internal threading bars with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks | Country of Origin | Israel |
| Remarks | Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
1.208
