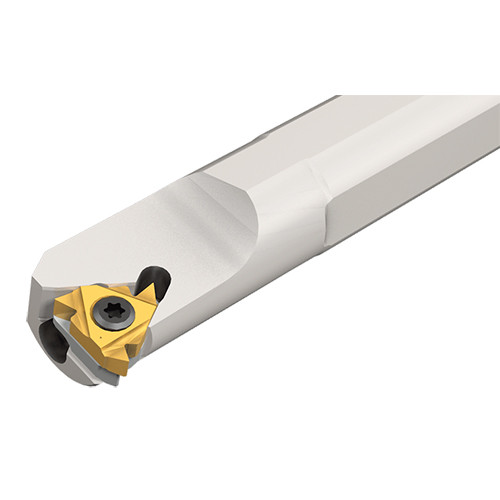

SIL 0625 P16B

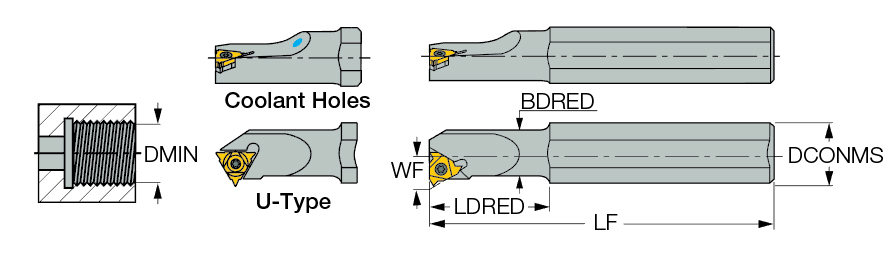

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Width (WF) | 0.45″ |
| Minimum Bore Diameter (DMIN) | 3/4″ | Master Insert Identification (MIID) | 16 IR/IL.. |
| Head Length (LH) | 1.57″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Cutting Position | Internal | Functional Length (LF) | 7″ |
| Application | | Int. Grooving | Internal Threading lay down | |
Product Features
| Family Description | Internal threading bars | Country of Origin | Israel |
| Remarks | B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AI 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
0.69
