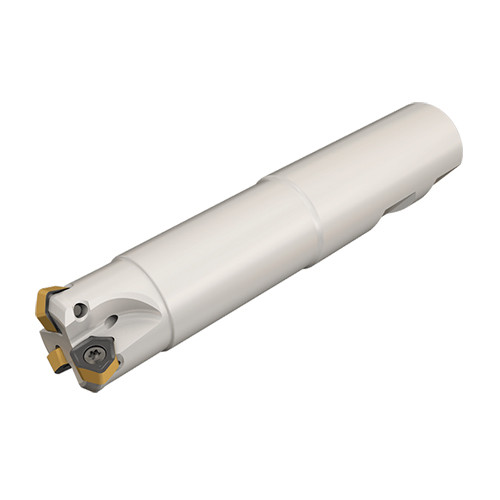

MF EWXD0.62-2-1.5W0.75-04
Indexable End Mill; 0.35″ Dia. × 0.059″ LOC × 3/4″ Shank Dia. × 3.85″ OAL × 1-1/2″ LU ; 2 FL ; Weldon Shank ; 30 Degrees

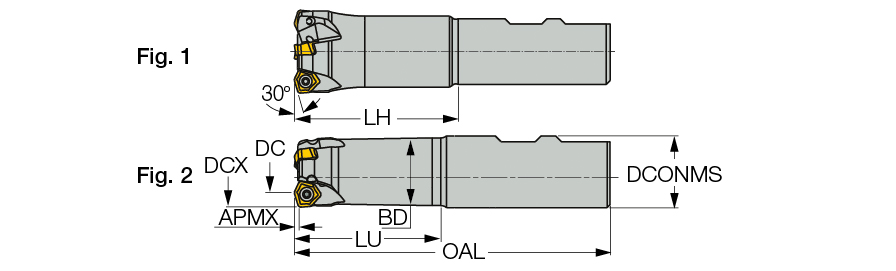

| Cutting Diameter (DC/DCX) | 0.35″ | Functional Length (LF) | 2.834″ |
| Cutting Diameter (DC) | 0.35″ | Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 0.059″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3.85″ | Body Diameter (BD) | 0.58″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 3.8 Degrees | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H600 WXCU 040310T | Body Material | Steel |
| Weight of Item (WT) | 0.33 Lbs | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 1-3/4″ | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | HELIDO UPFEED H600 LINE - moderate feed endmills carrying double-sided inserts with 6 cutting edges. | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
