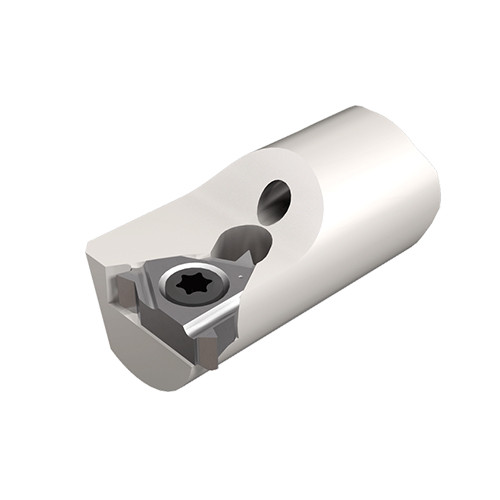

E12 SIR-11 HEAD

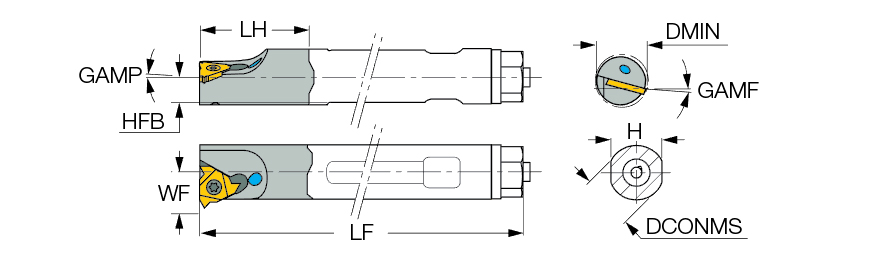

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 14.9 mm | Functional Width (WF) | 8.3 mm |
| Head Length (LH) | 24.8 mm | Master Insert Identification (MIID) | 11 IRM../11 IR |
| Shank Height (H) | 11 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Cutting Position | Internal | Functional Length (LF) | 179 mm |
Product Features
| Family Description | Interchangeable threading heads, used on carbide bars | Country of Origin | Israel |
| Remarks | Used on carbide shanks Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
0.082
