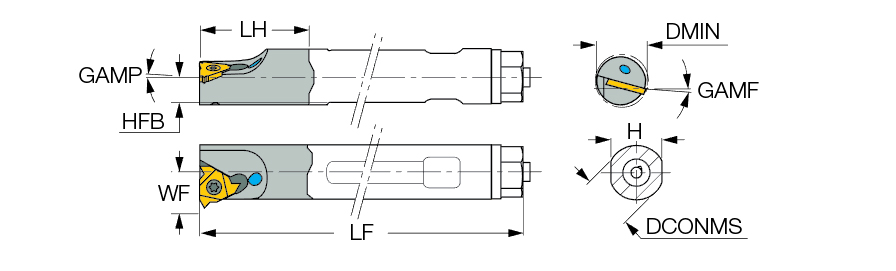

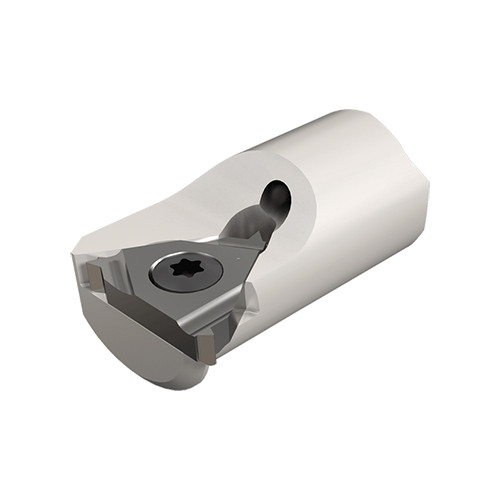

E-SIR 0625-16 HEAD
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 0.787″ | Functional Width (WF) | 0.43″ |
| Head Length (LH) | 1.17″ | Master Insert Identification (MIID) | 16 IRM../16IR |
| Shank Height (H) | 0.59″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Cutting Position | Internal | Functional Length (LF) | 7″ |
Product Features
| Family Description | Interchangeable threading heads, for carbide bars | Country of Origin | Israel |
| Remarks | Used on carbide shanks Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
0.022
