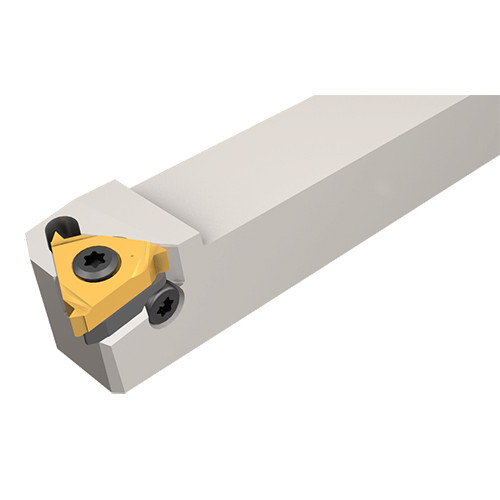

SEL 1000 M16

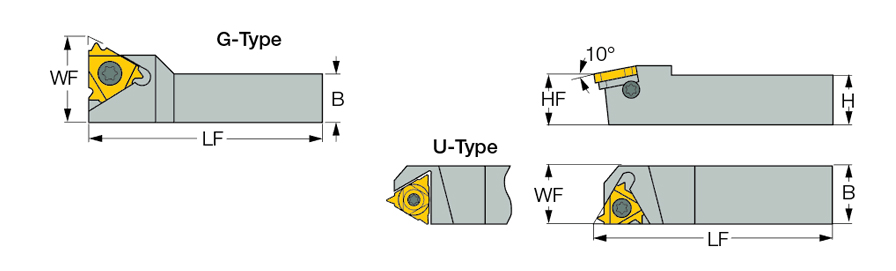

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | 16 ER/L.. |
| Shank Width (B) | 1″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Tool Type | External Non-Rotating Threading Tools |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | External Threading | | Functional Length (LF) | 6″ |
| Functional Width (WF) | 1″ |
Product Features
| Family Description | External threading toolholders (AD - short tools for adapter holders) | Country of Origin | Israel |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
1.757
