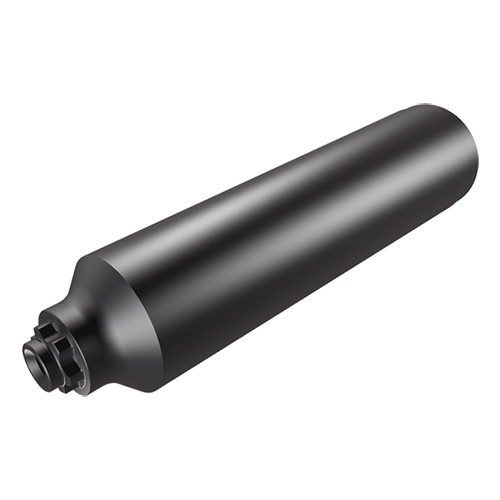

SD FM-S-A-L125-W32-SP17

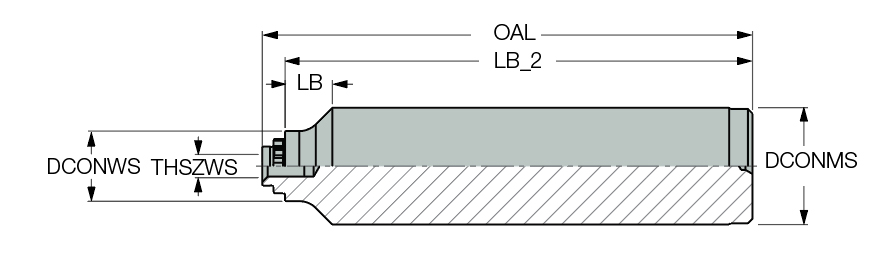

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Functional Length (LF) | 95 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Weight of Item (WT) | 0.75 kg |
| Material | Carbide | Measurement Type | Metric |
| Overall Length (OAL) | 131 mm | Body Material | Steel |
| Body Length (LB) | 12.5 mm | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable solid carbide face milling heads. | Country of Origin | Israel |
| Remarks | Apply lubricant to the clamping screw |
Shipping Info
Package Weight
1.925
