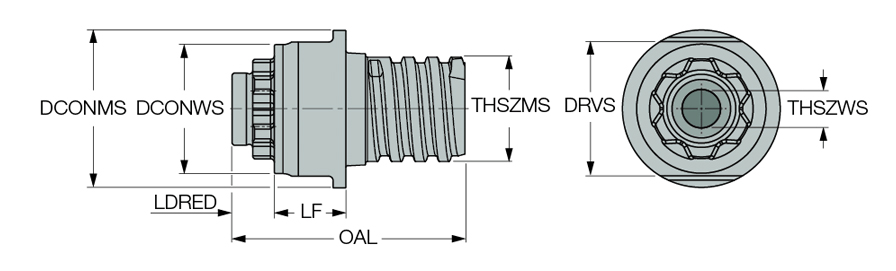

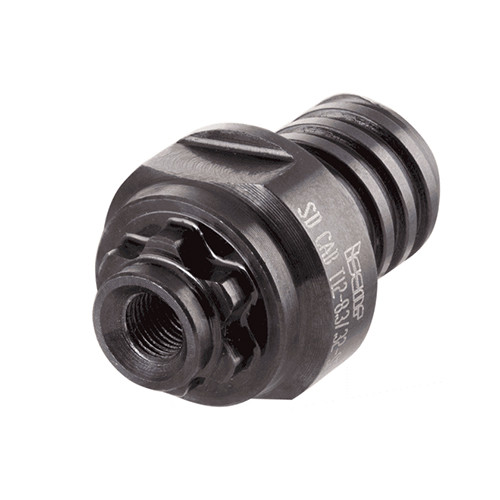

SD CAB T10-14/0.55-SP11
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M4x0.5 | Weight of Item (WT) | 0.05 Lbs |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Material | Carbide | Drive Size (DRVS) | 0.512″ |
| Overall Length (OAL) | 1.148″ | Measurement Type | Inch |
| Tool Type | Interchangeable Milling Connectors | Body Material | Steel |
| Body Diameter (BD) | 0.433″ | Reduced Body Diameter Length (LDRED) | 0.15″ |
| Functional Length (LF) | 0.551″ |
Product Features
| Family Description | Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks. | Country of Origin | Israel |
| Remarks | Apply lubricant to the screw head and threads |
Shipping Info
Package Weight
0.240
