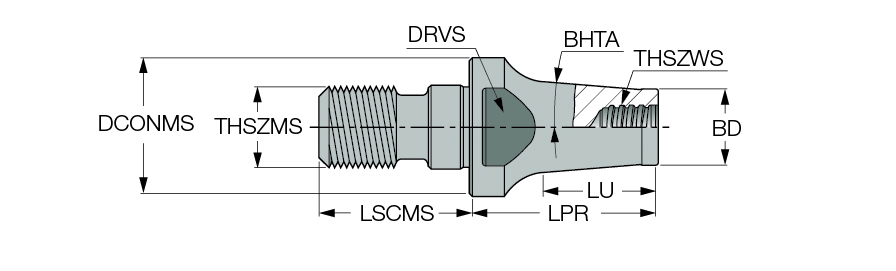

| Connection Diameter Machine Side (DCONMS) | 0.709″ | Tool Type | Interchangeable Milling Connectors |
| Protruding Length (LPR) | 0.984″ | Measurement Type | Inch |
| Shank Length (LS) | 0.787″ | Body Material | Steel |
| Body Diameter (BD) | 0.461″ | Overall Length (OAL) | 1.772″ |
| Coolant Supply Property (CSP) | External |
Product Features

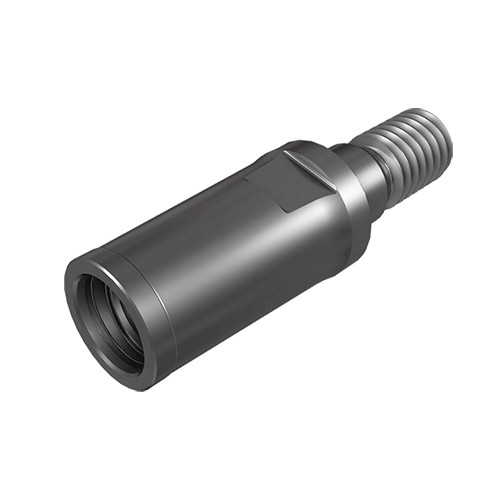

| Family Description | Adapters for connecting FLEXFIT shanks and MULTI-MASTER milling heads | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. Do not apply lubricant to the threaded connection For adaptation, click on More Info |
Shipping Info
Package Weight
0.099
