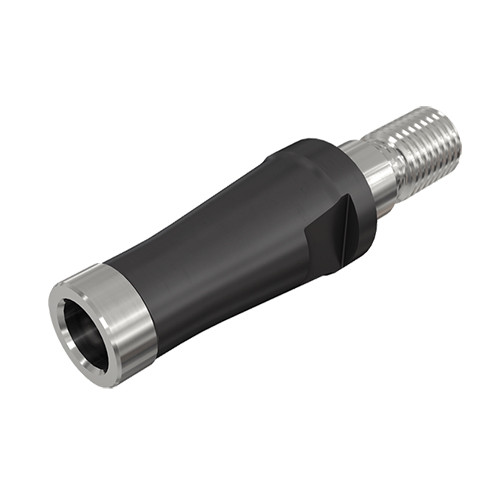

CAB M06M08

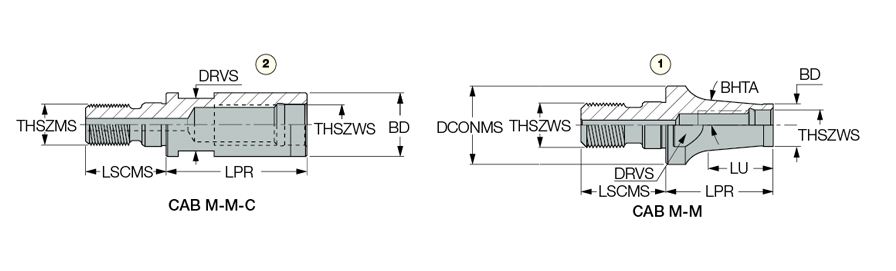

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M06 | Protruding Length (LPR) | 1.181″ |
| Connection Diameter Machine Side (DCONMS) | 0.512″ | Weight of Item (WT) | 0.04 Lbs |
| Material | Carbide | Connection Thread Nominal Size Machine Side (THSZMS) | M08 |
| Overall Length (OAL) | 0.976″ | Drive Size (DRVS) | 0.374″ |
| Coolant Supply Property (CSP) | Through Hole | Measurement Type | Inch |
| Clamping Length Machine Side (LSCMS) | 0.689″ | Body Material | Steel |
| Tool Type | Unique Adapter Milling System | Usable Length (LU) | 0.976″ |
| Body Diameter (BD) | 0.382″ |
Product Features
| Family Description | Reducers and extensions with coolant holes for the modular FLEX-FIT system. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.068
