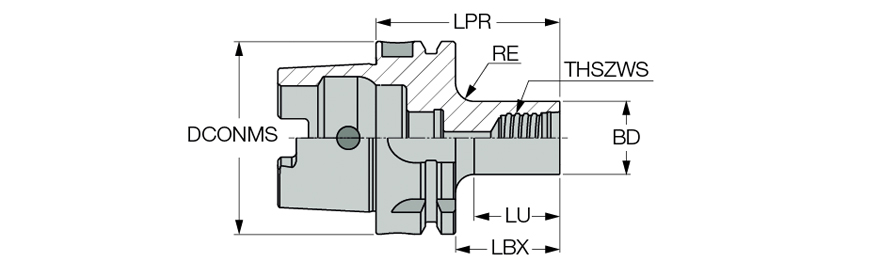

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Tool Type | HSK |
| Protruding Length (LPR) | 1.378″ | Measurement Type | Inch |
| Shank Size (SS) | 40 | Body Material | Steel |
| Body Diameter (BD) | 0.299″ | Overall Length (OAL) | 2.165″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

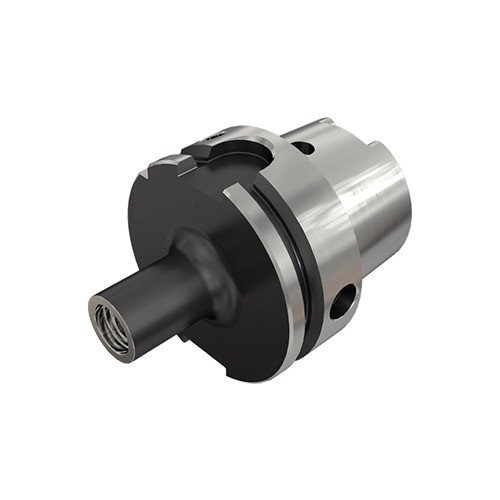

| Family Description | MULTI-MASTER threaded connection shanks with an integral HSK DIN 69893 form A tapered adaptation. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection For adaptation options, click on More Info |
Shipping Info
Package Weight
0.492
