SD S-A-L5.50-C.750-SP17

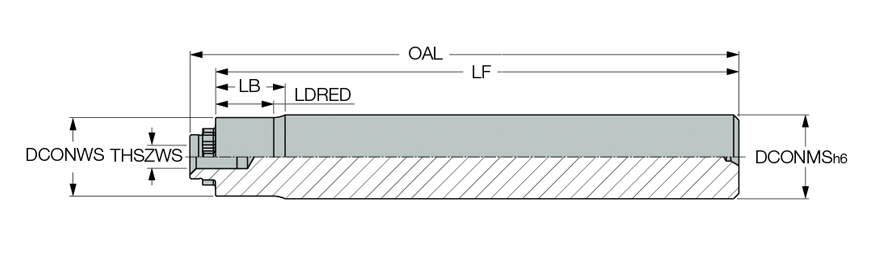

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Body Length (LB) | 0.91″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 5-1/2″ |
| Material | Carbide | Weight of Item (WT) | 0.68 Lbs |
| Overall Length (OAL) | 5.736″ | Measurement Type | Inch |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Body Diameter (BD) | 0.67″ | Reduced Body Diameter Length (LDRED) | 0.795″ |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable solid carbide milling heads. | Country of Origin | Israel |

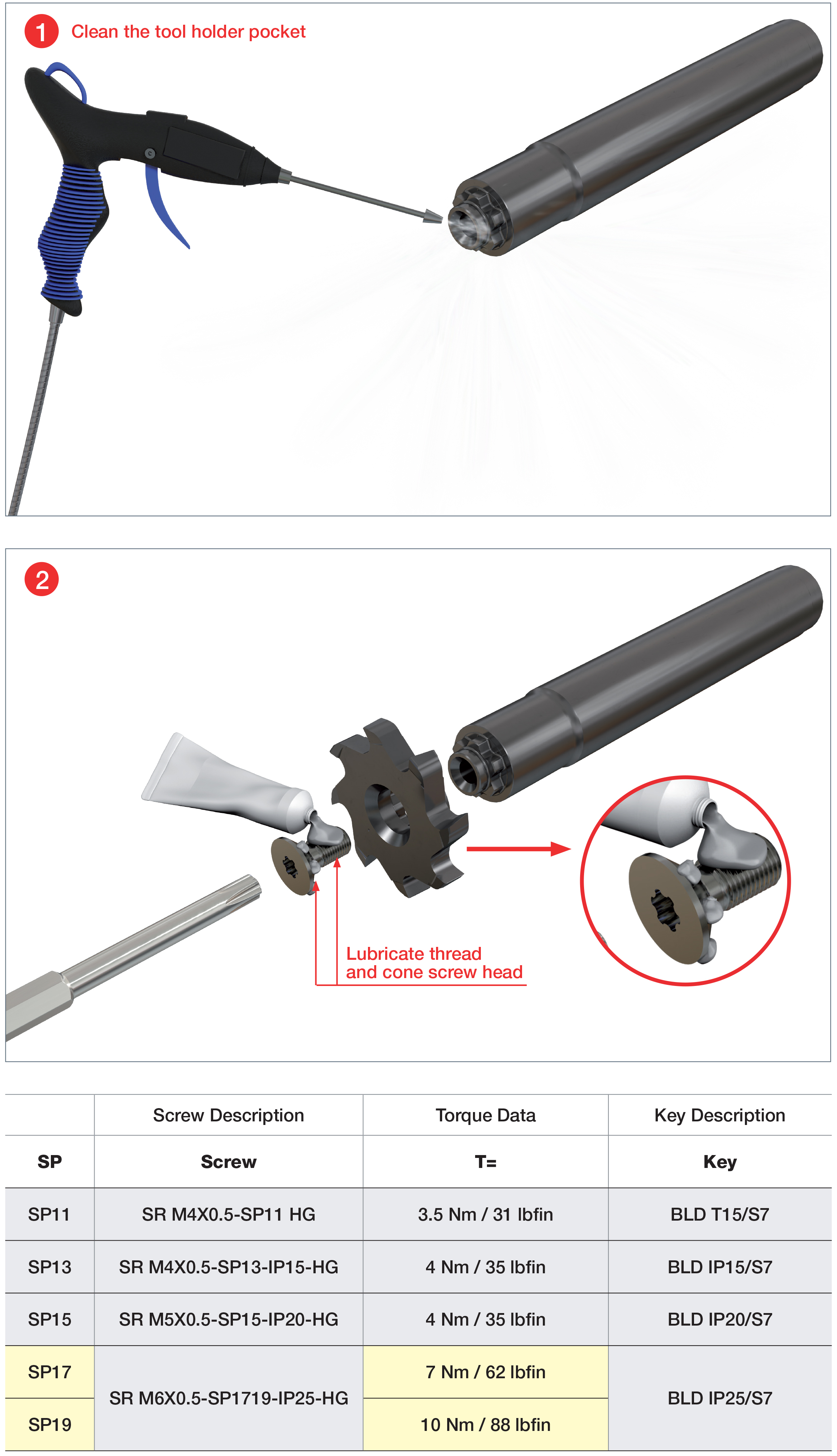

| Remarks | Apply lubricant to the SR M5X0.5-SP15 screw |
Shipping Info
Package Length
2.18800
Package Width
2.18800
Package Height
6.00000
Package Weight
0.926
