SD S-A-L140-C20 SP17

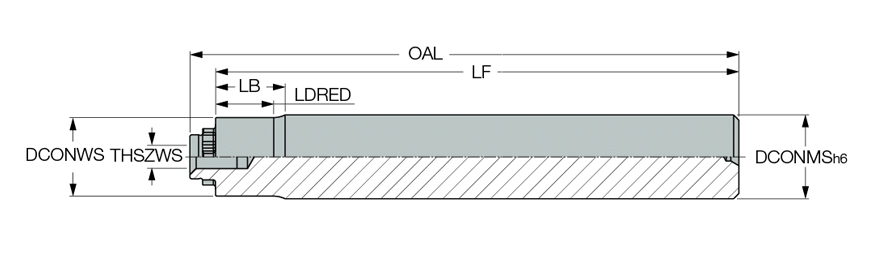

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Functional Length (LF) | 140 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Weight of Item (WT) | 0.33 Kg |
| Material | Carbide | Measurement Type | Metric |
| Overall Length (OAL) | 146 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 17 mm | Reduced Body Diameter Length (LDRED) | 20.2 mm |
| Body Length (LB) | 23.8 mm |
Product Features

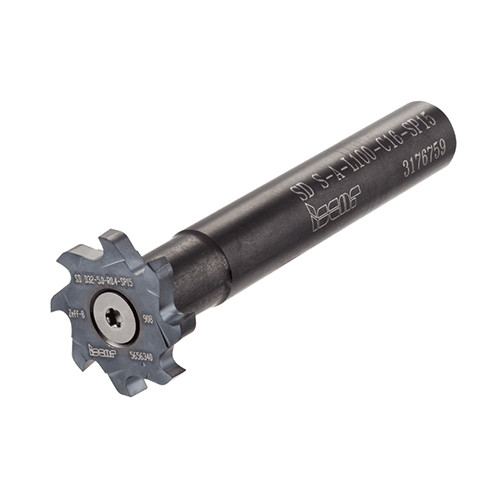

| Family Description | Stepped cylindrical shanks for interchangeable solid carbide milling heads. | Country of Origin | Israel |

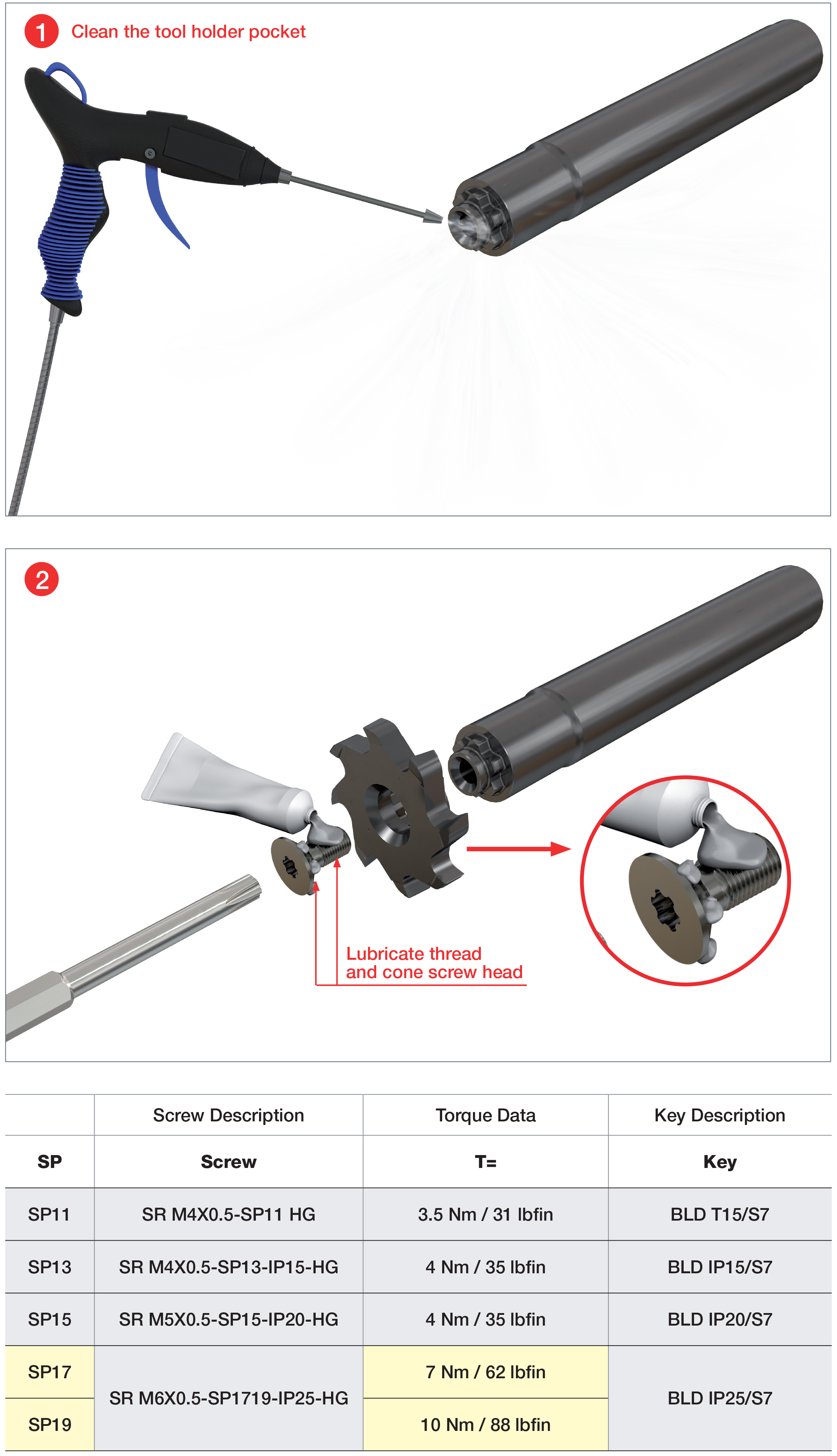

| Remarks | Apply lubricant to the clamping screw |
Shipping Info
Package Length
6.25000
Package Width
2.25000
Package Height
2.25000
Package Weight
0.965
