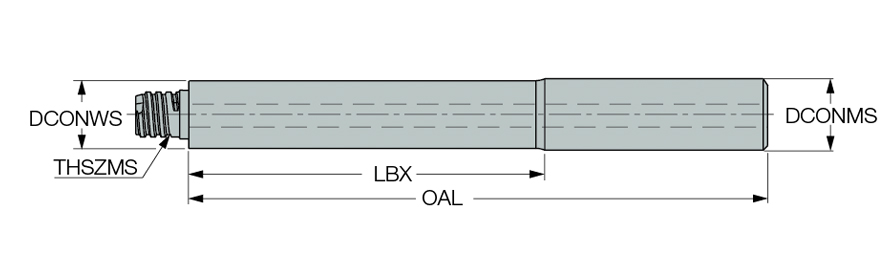

TS S-A-L90-C12-T08-C
| Connection Thread Nominal Size Workpiece Side (THSZWS) | Chip Surfer T05 | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Diameter (BD) | 11.5 mm |
| Material | Carbide | Body Length (LB) | 1-1/2″ |
| Overall Length (OAL) | 90 mm | Weight of Item (WT) | 0.15 Kg |
| Body Length Maximum (LBX) | 40 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Coolant Supply Property (CSP) | Through Hole | Measurement Type | Metric |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | SHANK-MASTER stepped cylindrical shanks with threaded adaptation for interchangeable solid carbide milling heads | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection |
Shipping Info
Package Weight
0.335
