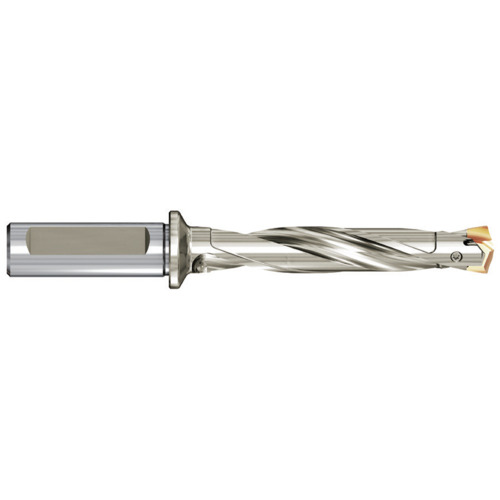

ZD33008125 DRILL BODY
| Cutting Diameter (DC) | 33 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 10-45/64″ | Cutting Direction (HAND) | Right Hand |
| Length Group | 8xD | Cutting Item Count (CICT) | 2 |
| Tool Type | Premium Tool Steel Holders | Cutting Edge Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | S32 | Flute Type | Spiral |
| Cutting Diameter Minimum (DCN) | 33 mm | Series/List # | ZD32008 |
| Cutting Diameter Maximum (DCX) | 33.9 mm | Coating | Nickel |
| Overall Length (OAL) | 14-17/32″ | Flange Diameter (DF) | 1-15/32″ |
| Shank Length (LS) | 2-3/8″ | Decimal Equivalent | 1.2992″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
14.96062992
Package Width
2.362204724
Package Height
2.362204724
Package Weight
0.999
