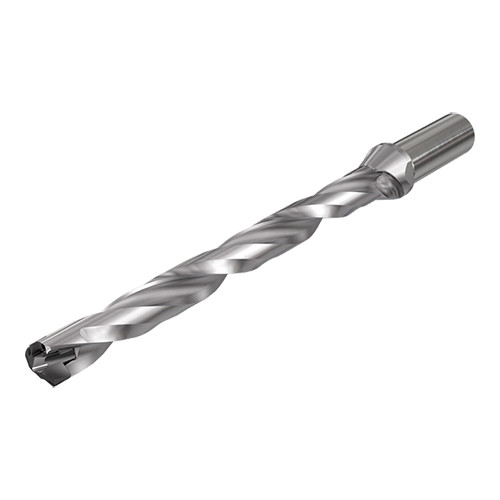

DCN 0630-630-075R-10D

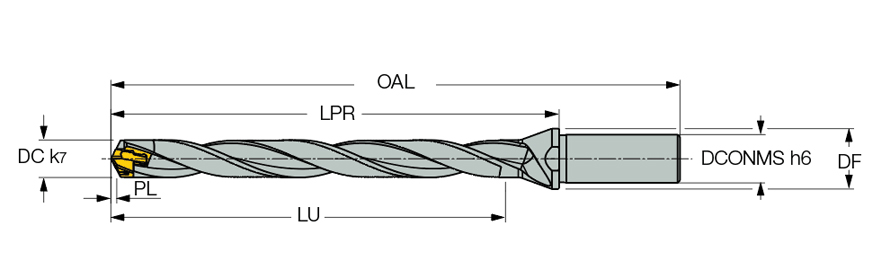

Drill; 0.63″ Dia. × 0.63″ Min. Dia. × 0.668″ Max. Dia. × 3/4″ Shank Dia. × 9.26″ OAL × 6.415″ LU × 1.97″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6.415″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 160 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Point Length (PL) | 0.115″ |
| Insert Seat Size Code (SSC) | 16.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.63″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.668″ | Body Material | Steel |
| Protruding Length (LPR) | 7.29″ | Flange Diameter (DF) | 0.98″ |
| Overall Length (OAL) | 9.26″ | Decimal Equivalent | 0.63″ |
| Shank Length (LS) | 1.97″ |
Product Features
| Family Description | SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 10xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
