D3N 145-116-16R-8D

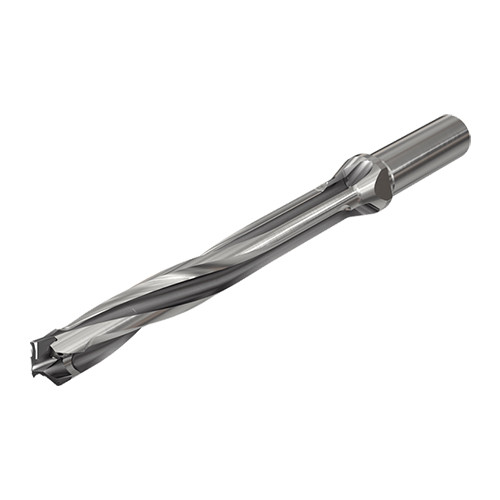

Drill; 14.5 mm Dia. × 14.5 mm Min. Dia. × 14.9 mm Max. Dia. × 16 mm Shank Dia. × 193.8 mm OAL × 119.1 mm LU ; Round Shank ; Series STAW

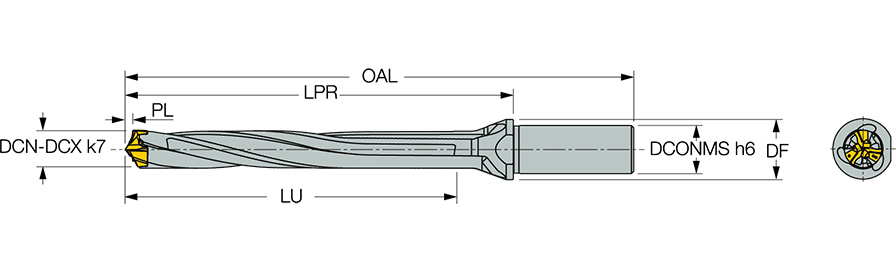

| Cutting Diameter (DC) | 14.5 mm | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 119.1 mm | Measurement Type | Metric |
| Shank Type | Round | Master Insert Identification (MIID) | H3P 145-IQ |
| Application | | Drilling | | Point Length (PL) | 3.1 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 14 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 14.5 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 14.9 mm | Flange Diameter (DF) | 20 mm |
| Protruding Length (LPR) | 145.8 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 193.8 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.522
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
