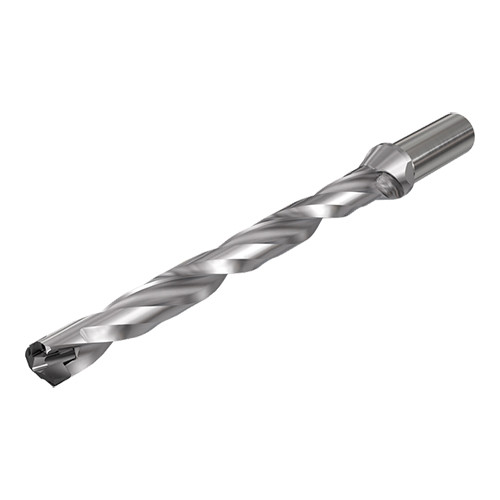

DCN 190-190-25R-10D
Drill; 19 mm Dia. × 19 mm Min. Dia. × 19.99 mm Max. Dia. × 25 mm Shank Dia. × 276 mm OAL × 192.9 mm LU × 56 mm Shank Length ; Series STAW

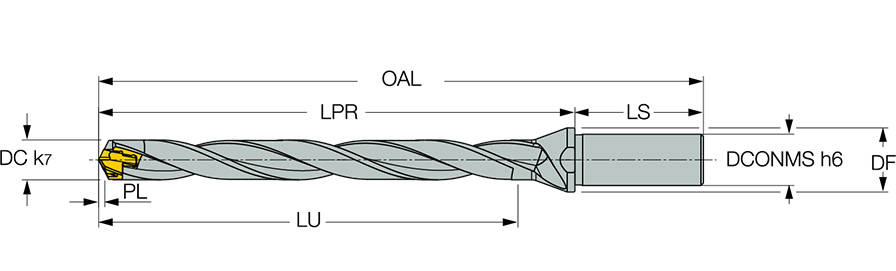

| Cutting Diameter (DC) | 19 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 192.9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | ICP 190 |
| Insert Seat Size Code (SSC) | 19.0 | Point Length (PL) | 2.88 mm |
| Cutting Diameter Minimum (DCN) | 19 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 19.99 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 220 mm | Body Material | Steel |
| Overall Length (OAL) | 276 mm | Flange Diameter (DF) | 32 mm |
Product Features
| Family Description | SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature a variety of standard drilling head types for drilling on different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 10xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1.190
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
