D3N 0984-787-125A-8D

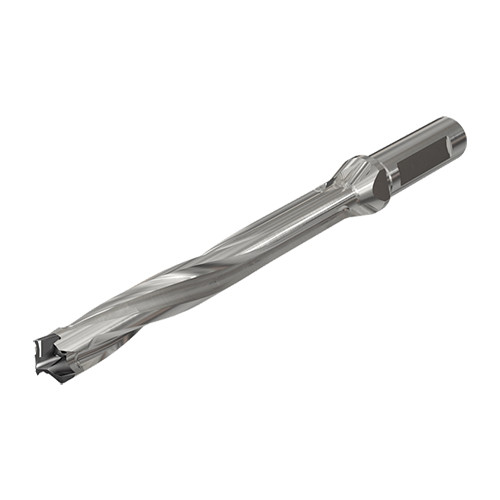

Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD

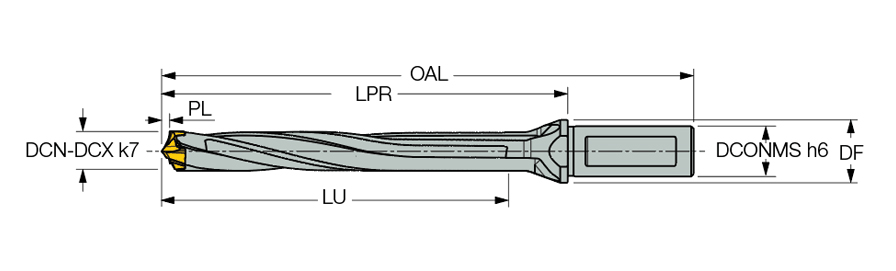

| Cutting Diameter (DC) | 0.984″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 8.079″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 250-IQ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.202″ |
| Insert Seat Size Code (SSC) | 25 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.984″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 1.02″ | Body Material | Steel |
| Protruding Length (LPR) | 9.92″ | Flange Diameter (DF) | 1.654″ |
| Overall Length (OAL) | 12.272″ | Decimal Equivalent | 0.984″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
2.033
