CD3300165JHR00

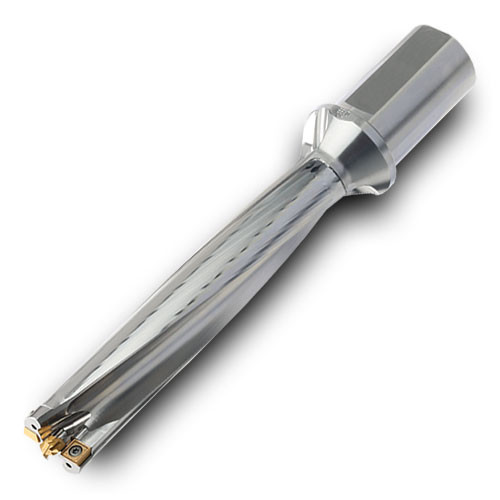

Drill; 33 mm Dia. × 40 mm Shank Dia. × 278.2 mm OAL × 169 mm LU × 70 mm Shank Length ; 5D ; Series STAW
| Cutting Diameter (DC) | 33 mm | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 169 mm | Measurement Type | Metric |
| Length Group | 5D | Effective No. of Teeth | 2 |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 3.89 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Series/List # | STAW |
| Functional Length (LF) | 210.2 mm | Angle | 140 Degrees |
| Overall Length (OAL) | 278.2 mm | Body Material | Steel |
| Shank Length (LS) | 70 mm | Flange Diameter (DF) | 50 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Two Effective Holds +.003/-.000 on Hole Diameter Coolant Through | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.161
