LD3900117JHR00

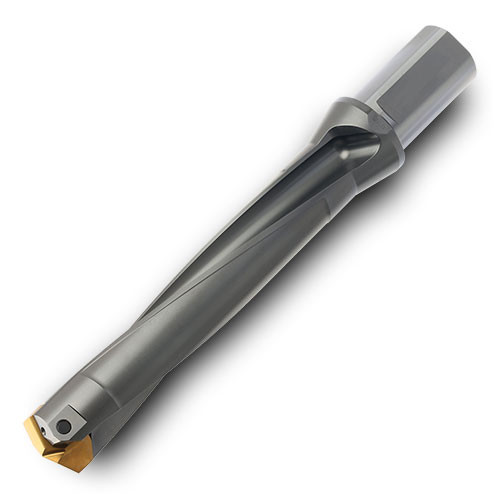

Drill; 39 mm to 39.9 mm Dia. × 40 mm Shank Dia. × 123.22 mm LU × 70 mm Shank Length ; 3D
| Usable Length (LU) | 123.22 mm | Shank Length (LS) | 70 mm |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 39 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 39 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 39.9 mm | Body Material | Steel |
| Functional Length (LF) | 153.09 mm | Flange Diameter (DF) | 50 mm |
Product Features
| Family Description | Coolant Thru Holds +.002/-.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.102
