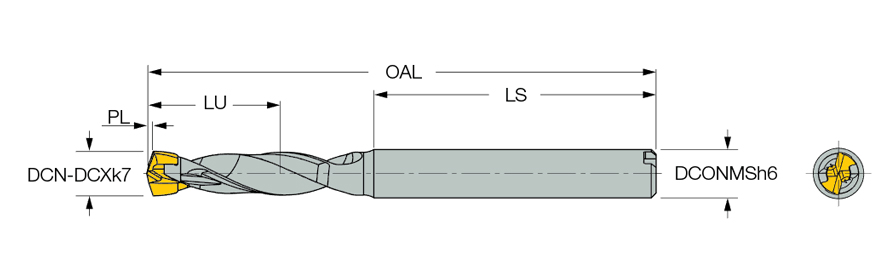

DCN 0197-059-0236C-3D

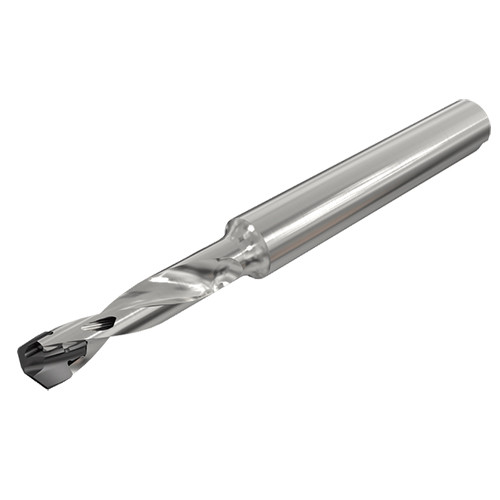

Drill; 0.197″ Dia. × 0.197″ Min. Dia. × 0.216″ Max. Dia. × 0.236″ Shank Dia. × 2.413″ OAL × 0.6193″ LU × 1.38″ Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 0.197″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 0.6193″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 050 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Point Length (PL) | 0.02874″ |
| Insert Seat Size Code (SSC) | 5.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.197″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.216″ | Body Material | Steel |
| Protruding Length (LPR) | 1.076″ | Decimal Equivalent | 0.197″ |
| Overall Length (OAL) | 2.413″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.38″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.02
